Water Well Drilling Rigs for Sale

Water well drilling rigs are a series of machines for developing groundwater that people can use the drilling technology to extract groundwater to supplement the water demand of people’s daily life and production. The water well drilling machine can not only be used for domestic water, agriculture water, and industrial water drilling but also is suitable for hydrogeological exploration, construction engineering, and bridge foundation drilling. The principles of different drilling equipment are different, which can be divided into the Dayton drilling technology and rotary drilling technology. In addition, there are a variety of water well drilling rigs for sale in YG Machinery, such as tractor-mounted water well drilling rigs, portable water well drilling machines, rotary drilling rigs, horizontal directional drilling rigs, crawler DTH drilling rigs, anchor drilling rigs, core drilling rig for mining, home water well drilling rigs, full hydraulic core drilling rigs, etc… Pick up the suitable water well drilling equipment according to your requirements and contact us for more details now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Types of Water Well Drilling Rigs for Sale

According to the system compositions, we can divide the water well drilling machine into three types: rotary water well drilling rig, impact water well drilling machine, and compound water well drilling rig for sale. Rotary water well drilling equipment can be subdivided into large and small pot drilling machines, rotary drills with forward and reverse circulation, hydraulic power head well drill rigs, DTH impact rotary drill equipment, etc… So many types of water well drilling rigs for customers to choose from. Maybe some people want to buy this machine but don’t know which model will suit them. Then I will give a brief introduction to these drilling machines in terms of their size, working mode, working efficiency, suitable operation place, function, and some other aspects. I hope it will be of some help to your choice. And if you still can’t choose the suitable types, please advise your main application. Then we will recommend the best water well drilling rigs for sale in our company to you.

Hydraulic Core Well Drilling Rig
Core Boring Rig Manufacturer
Core Drilling Machine for Sale
Geotechnical Core Drilling Rig
Hydraulic Core Drilling Rig Manufacturer
Hydraulic Core Drilling Machine
Hydraulic Core Well Drilling Rig Core Boring Rig Manufacturer Core Drilling Machine for Sale Geotechnical Core Drilling Rig Hydraulic Core Drilling Rig Manufacturer Hydraulic Core Drilling Machine

Model HZ-130Y/130YY HZ-180Y/180YY HZ-200Y/200YY
Drilling Depth (m) 130 180 200
Open Drilling Diameter (mm) 220 220 325
Final Hole Diameter(mm) 75
Drill Pipe Diameter(mm)

42-60

Drill Pipe Inclination (°) 90-75
Power (kW) 13.2 13.2 14.7
Weight (kg) 920 950 1150
Dimensions(mm) 2400*950*1400 2400*950*1400 2700*950*1770

Get a Free Quote

Small Water Well Drilling Rigs

As its name suggests, small water well-drilling rigs or mini water drilling rigs are a kind of water well drilling rigs for sale in small sizes. It is mainly used for digging soil, limestone, and other soft rocks and it’s also recommended to drill hard rock. We just need to equip different drill bits with the drilling machine for different geological situations. It has the advantages of fast drilling, convenient movement, and low price, which can drill the soil 30 to 40 meters in an hour. There are different models of small water well drilling rigs for sale with different drill pipe diameters, lengths, motor power, drill hole depth, pump power, maximum opening diameter, and so on. You can choose the model you want to be based on the image and parameters below.

Water Well Drilling Rig for Sale
HY- 180 Water Well Drilling Rig

Technical Parameter:
Model: HY- 180
Drill hole depth: 80-100mm
Maximum Opening Diameter: 80 – 200mm
Drill Pipe Diameter: Φ42mm, 1.5m
Motor Power: 1.5kw – 2kw
Pump Power: 2.2kw
Voltage: 220V
Size: 700mm*700mm*2500mm
Weight: 120kg
Get a Free Quote

Home Water Well Drilling Equipment

Home water well drilling equipment, also called a backyard water well drilling rig is usually small and suitable for home use. The two-phase tank-type water well drilling rig produced by our company is such a model. It’s specially designed and economically priced for water drilling in your backyards. Because they are both of small sizes, it has many similar features to mini water well drilling rigs. It’s very simple to operate, anyone can use it easily refer to the operation video or the operation manual provided by us. It is affordable and suitable for many types of ground operations, whether you want to buy it for your backyard or do a business that helps other people dig wells, it will be your ideal choice. You can also rent it to others for drilling water wells. No matter how you want to use it, I’m sure it will help you bring great profit.

Water Drill Rig
HY- 120 Water Drill Rig

Technical Parameter:
Model: HY- 120
Drill hole depth: 80m-100M
Maximum Opening Diameter: 80 – 200mm
Drill Pipe Diameter: Φ42mm, 1.5m
Motor Power: 1.5kw – 2kw
Pump Power: 2.2kw
Voltage: 220V
Size: 700mm*700mm*2900mm
Weight: 120kg
Get a Free Quote

Portable Water Well Drilling Rigs for Sale

The portable water well drilling rigs for sale in our company are collapsible drilling equipment. So it’s very convenient to carry and store. This kind of drill adopts the ball clip clamping mechanism, which can realize the continuous reverse lever and make it easy to operate. In addition, its drilling function is compelling with 100 meters of drilling depth and the opening hole diameter can be up to 200mm. As long as your drilling needs are within this range, they can meet your requirements. So it’s usually the first choice for those customers who pursue simplicity and convenience. The complete set of equipment of the machine includes the main engine and some necessary tools, such as a drill pipe with a length of 40 meters, two drill bits, one high-pressure water pump, a high-pressure water pipe with a height of 5m, a power transformer of 60V,  one specification and one certificate. So if the technical parameter of the machine matches your needs, please send us an email to tell us more about your requirements and we will send you the quotation soon.

Portable Water Well Drilling Machine
HY- 240 Portable Water Well Drilling Machine

Technical Parameter:
Model: HY- 240
Drill hole depth: 100M
Maximum Opening Diameter: 80 – 220mm
Drill Pipe Diameter: Φ51mm, 1.5m
Motor Power: 4kw
Pump Power: 2.2kw
Voltage: 220V
Size: 700mm*700mm*2500mm (can be folded)
Weight: 150kg
Get a Free Quote

Folded Water Drilling Rig
HY- 350 Folded Water Drilling Rig

Technical Parameter:
Model: HY- 350
Drill hole depth: 100m
Maximum Opening Diameter: 80 – 350mm
Drill Pipe Diameter: Φ51mm, 1.5m
Motor Power: 3kw
Pump Power: 2.2kw
Voltage: 380V
Size: 800mm*800mm*2700mm (can be folded)
Weight: 250kg
Get a Free Quote

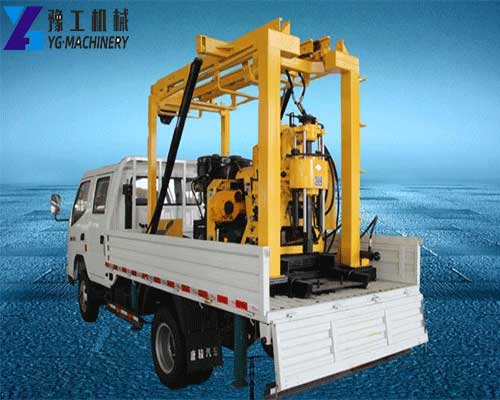

Tractor Mounted Water Well Drilling Rig

The tractor-mounted water well drilling rig is specially designed to meet the requirements of high efficiency, high speed, and strong mobility of field drilling. It is a very popular model for it’s more productive and can reduce labor strength. We can supply various tractor-mounted water well-drilling rigs with a variety of models, sizes, and working capacities. HY-500 is a kind of simple and relatively inexpensive tractor-mounted water well drilling machine. Its drilling depth can be up to 120m and the hole diameter can reach 500mm. Hang it on the back of the tractor and you can use it very conveniently. As a self-propelled core drilling rig, the XYX-3 trailer-mounted water well drilling machine in YG is another popular tractor-mounted drilling rig. The price of XYX-3 is a little high, but it’s also more efficient and the drilling depth can reach 600m simultaneously. Therefore, it is more suitable for large drilling projects.

Tractor Mounted Water Well Drilling Rig
HY- 500 Tractor Mounted Water Well Drilling Rig

Technical Parameter:
Model: HY-500
Drill hole depth: 120m
Maximum Opening Diameter: 80 – 500mm
Drill Pipe Diameter: Φ65mm, 2m
Motor Power: 5.5kw
Pump Power: 5.5kw
Voltage: 380V
Size: 1000mm*1500mm*2000mm
Weight: 600kg
Get a Free Quote

Tractor Mounted Water Well Drilling Rig Machine for Sale

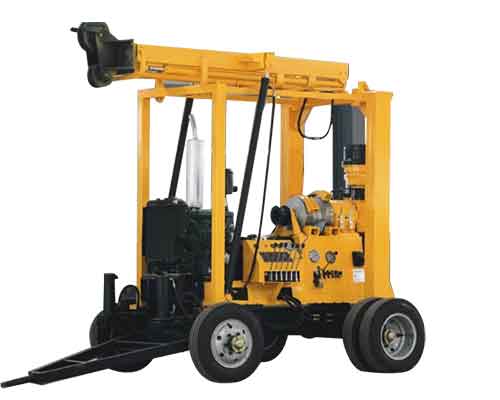

XYX-3 Tractor Mounted Water Well Drilling Rig Machine

Technical Parameter:
Model: XYX-3
Drill hole depth: 600m
Maximum Opening Diameter: 325mm
Drill Pipe Diameter: Φ60mm
Motor Power: 13.2kw
Pump Power: 13.2kw
Voltage: 380V
Size: 2900mm*2560mm*3300mm
Weight: 3600kg
Get a Free Quote

Hydraulic Water Well Drilling Rig

A hydraulic water well drilling rig is a kind of high-efficiency and multi-function drilling equipment that is mainly used for drilling wells, agricultural irrigation wells, ground source heat pump wells, and some other types of wells, especially suitable for water intake projects in mountainous areas and rock formations. It can be perforated on different strata and the maximum drill diameter can be up to 300mm. By understanding some of the advantages of this hydraulic water well drilling rig for sale in YG Machinery, you will find that it is well worth the purchase. First, this machine adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and a large diameter hydraulic cylinder for propulsion. The advanced configuration has dramatically improved the working efficiency of drilling wells. Second, the design of a two-stage air filter and compressed air intake can prolong the service life of the diesel engine. Third, a unique pump set design is convenient to maintain which can reduce maintenance costs. In addition, the two-speed rotation and propulsion can meet the different drilling needs in the soil and rock layers. So if you need an efficient and versatile drilling machine, the hydraulic well drilling rig will be your ideal choice.

Hydraulic Water Drilling Rig
ZX – 220 Hydraulic Water Drilling Rig for Sale

Technical Parameter:
Model: ZX- 220
Drill hole depth: 100m
Maximum Opening Diameter: 80 – 220mm
Drill Pipe Diameter: Φ51mm, 1.5m
Motor Power: 15HP
Pump Power: 7.5HP
Motor: Diesel, gasoline engine
Size: 800mm*800mm*2700mm
Weight: 250kg
Get a Free Quote

Hydraulic Water Well-Drill with Diesel Engine for Sale
ZX-280 Hydraulic Water Well Drill with Diesel Engine for Sale

Technical Parameter:
Model: ZX- 280
Drill hole depth: 120m
Maximum Opening Diameter: 80 – 280mm
Drill Pipe Diameter: Φ51mm, 1.5m
Motor Power: 8HP
Pump Power: 3.5HP
Motor: Diesel, gasoline engine
Size: 800mm*800mm*2700mm
Weight: 200kg
Get a Free Quote

Shallow And Deep Water Well Drilling Rigs

Shallow water well drilling equipment and deep water well drilling mainly refer to the drilling depth of the well. People have different requirements for the depth of the well they want to drill. So when you choose a water well drilling rig for sale, you must first look at its drill hole depth, and then compare its other characteristics and advantages. Only in this way can you find the drilling machine that suits you best. There are so many kinds of water well drilling rigs for sale with various drilling depths from a few meters to hundreds of meters in Henan YG Machinery. If you know the drilling depth you need, please kindly tell us about this in your email sent to us, and if convenient, also tell us the opening hole diameter and the geological conditions. Then we can give you a more accurate quotation.

The Construction Site
  The Construction Site

Get a Free Quote

Structure Composition of Water Well Drilling Rigs

  1. Hydraulic oil pump. The large displacement pump provides power for the powerhead, and the small displacement pump provides power for the four-leg oil cylinder, the lifting mast oil cylinder, and the lifting pulley oil cylinder.
  2. Four legs. Small water well drilling rigs consist of hydraulic oil cylinders and fixed frames that operators can adjust the level of the equipment at the worksite and play the role of supporting and stabilizing the body of the machine.
  3. Mast. It is a frame structure welded by a combination of giant steel pipe, channel steel, and angle steel. The inner slots of double-channel steel are used as the running track under the powerhead to ensure the perpendicularity of the drill hole.
  4. Powerhead. Use a gear reducer mechanism and there is a large-hole mandrel in the middle of the low-speed shaft. The upper end of the mandrel can be connected with the rubber tube interface of the concrete pouring equipment to conduct concrete pouring. The lower end of the mandrel connects with the drill pipe and drill bits through the flange. The high-speed shaft is driven by a large torque hydraulic motor.

System Composition of Water Well Drilling Rigs:

  • The power system can provide power equipment for the whole machine.
  • The work system can work according to process requirements.
  • The transmission system is used to transfer and allocate energy for the working unit.
  • The Control system can control all systems and equipment, as well as coordinate the work according to the process requirements.
  • The auxiliary system assists the main system.

The Maintenance of the Water Drilling Machine:

  1. Always check whether the wire rope is replaced;
  2. Pay attention to its continuous use time, the motor can’t be overcharged for so long time;
  3. The motor part of the drills should be carefully handled and avoid raining and splashing water when you need to move the machine.
  4. The drill pipe thread should be lubricated and placed in the rain shelter to avoid rust;
  5. The electric motor wire connection shouldn’t touch the electricity when you don’t use it;
  6. Check the circuit and transformer insurance when the motor doesn’t turn.

How Do the Water Well Drilling Rigs Work?

The work mode of water well drilling rigs is pump-suction and reverse circulation. Under atmospheric pressure, circulating liquid flows from the sedimentation tank to the bottom of the well along the circular gap of the well hole through the back ditch. At this point, the rotary disk drives the drill pipe and rotates the drill bit rotation for drilling. Then the negative pressure established by the mud pump suction draws the debris mud into the inner cavity of the drill pipe and rises to the faucet. Then it is discharged into the sedimentation tank through the mud pump. The circulating liquid continues to flow into the hole after precipitation, and so on, forming a reverse-circulation drilling operation.

The Package and Transportation of Water Well Drilling Machine
The Package and Transportation of the Water Well Drilling Machine

The Package of HZ Hydraulic Water Well Drilling Rig
The Package of HZ Hydraulic Water Well Drilling Rig

Get a Free Quote

Water Well Drilling Machine Price:

Different types of water well drilling rigs for sale in our company have different prices. If you choose one or more models you want, please click the inquiry button to contact us, then our sales manager will send you the details, catalog, and price list according to the models you pick up. You may rest assured that we will give you an optimal water well-drilling machine price.

Water Well Drilling Rigs Suppliers – YG Machinery

Since Henan YG Machinery was established, we have obtained several municipal, provincial, and national certificates of honor. Our company’s consistent purpose is to survive by quality and develop by reputation. Over the past twenty years, we have kept learning, innovating, and upgrading technology. We have the most advanced technology and production machines now. With so many skillful workers, production efficiency has been continuously improved. We always insist on providing customers with first-class quality, a first-class reputation, and first-class service, try our best to meet the needs of customers. Now our machines are not only sold all over China but also exported to many countries around the world. Meanwhile, because of the good quality and reasonable price of our products, we have received our customers’ general praise. If you are planning to purchase some water well drilling rigs, as well as some other types of drill rig machines, such as core drill rigs for sale, hydraulic core drilling rigsportable DTH drilling rigs, crawler DTH drilling rigs, trailer-mounted water well drilling rigs, rotary drilling rigs, horizontal directional drilling rigs, anchor drilling rigs, hydraulic pile drivers, core drilling rig for mining, etc… please feel free to contact us now, we will send you quotation quickly.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
