Small Water Well Drilling Rigs for Sale

Small water well drilling rigs, small water well drilling machine or mini water well drilling rigs, small water well drilling machine is a kind of water well drilling machine with small size and specially designed for home use, personnel use, farm use, agriculture use and some other uses. The most outstanding features of the small water drilling machine is that they are portable to transport and carry, easy to operate, high in working efficiency, versatile and inexpensive, which is the best choice of small drilling projects. This type of water drilling rigs is more suitable for digging soft rock, such as, soil and limestone. So please kindly tell me more about your requirements, such as, the drilling depth, opening hole diameter, the geological conditions, your uses, etc… Then we can check if the model you choose meets your drilling requirements. If it is suitable,we will send you quotation and more details quickly. If not, we will recommend you the more suitable model according to your needs.



HY-180B Single Phase Electric Telescopic Water Well Drilling Rig



HY-180B Two Phase Electric Telescopic Water Well Drilling Rig
HY-180B Single Phase Electric Telescopic Water Well Drilling Rig

 Technical Parameter:
Model HY-180B
Opening Hole Diameter 80m-200m
Drilling Depth 80m-100m
Drill Pipe Diameter φ42mm
Drill Pipe Length 1.5m
Motor Power 1.5kw-2kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 500kg
Size 700mm*700mm*2500mm
Weight 120kg

Get a Free Quote



HY-240E Electric Hydraulic Water Well Drilling Machine



Electric Hydraulic Water Well Drilling Machine
HY-240E Electric Hydraulic Water Well Drilling Machine

 Technical Parameter:
Model HY-240E
Opening Hole Diameter 0-260mm
Drilling Depth 120m
Drill Pipe Diameter φ51mm
Drill Pipe Length 1.5m
Motor Power 4kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 800kg
Size 800mm*700mm*2500mm
Weight 200kg

Get a Free Quote



ZX-220 Gasoline Hydraulic Small Water Well Drilling Rigs



Gasoline Hydraulic Small Water Well Drilling Rigs
ZX-220 Gasoline Hydraulic Small Water Well Drilling Rigs

Technical Parameter:
Model ZX-220
Opening Hole Diameter 0-280mm
Drilling Depth 120m
Drill Pipe Diameter φ51mm
Drill Pipe Length 1.5m
Motor Power 4kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 800kg
Size 800mm*700mm*2500mm
Weight 200kg

Get a Free Quote

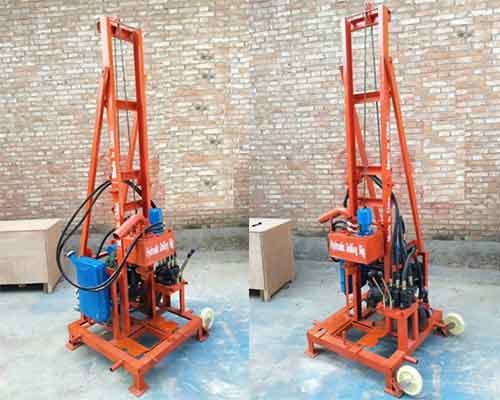

ZX-280 Diesel Hydraulic Water Drilling Machine



Diesel Hydraulic Water Drilling Machine
ZX-280 Diesel Hydraulic Water Drilling Machine

Technical Parameter:
Model ZX-280
Opening Hole Diameter 0-280mm
Drilling Depth 120m
Drill Pipe Diameter φ51mm
Drill Pipe Length 1.5m
Motor Power 4kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 800kg
Size 800mm*700mm*2500mm
Weight 200kg

Get a Free Quote



HY-120 Single Phase Tank  Small Water Well Drilling Rigs for Sale



Two Phase Tank Type Small Water Well Drilling Rigs for Sale
HY-120 Single Phase Tank Type Small Water Well Drilling Rigs for Sale

Technical Parameter:
Model HY-120
Opening Hole Diameter 0-120mm
Drilling Depth 100m
Drill Pipe Diameter φ42mm
Drill Pipe Length 1.5m
Motor Power 4kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 500kg
Size 700mm*700mm*2900mm
Weight 120kg

Get a Free Quote



Small Fold Water Well Drilling Rig



The small fold water well drilling rig is a very portable water well drilling machine. It can be folded when in transit or not in use, so it won’t take up too much space and can save transportation costs. In addition, the machine can be widely used, such as, household water drilling, irrigation wells, installation of water air conditioner, construction sit piling, etc… Check the models with technical parameters below and choose the suitable model you would like, then send us email to us for quotation.



HY-180 Single Phase Small Fold Water Well Drilling Rig



Two Phase Small Fold Water Well Drilling Rig
HY-180  Single Phase Small Fold Water Well Drilling Rig

Technical Parameter:
Model HY-180
Opening Hole Diameter 80m-200m
Drilling Depth 80m-100m
Drill Pipe Diameter φ42mm
Drill Pipe Length 1.5m
Motor Power 1.5kw-2kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 500kg
Size 700mm*700mm*2500mm
Weight 120kg

Get a Free Quote



HY-240 Single Phase High-power Electric Small Fold Water Well Drilling Machine



Two Phase High Power Electric Small Fold Water Well Drilling Machine
HY-240 Single Phase High Power Electric Small Fold Water Well Drilling Machine

Technical Parameter:
Model HY-240
Opening Hole Diameter 0-240mm
Drilling Depth 100m
Drill Pipe Diameter φ51mm
Drill Pipe Length 1.5m
Motor Power 4kw
Pump Power 2.2kw
Voltage 220v
Lifting Force 500kg
Size 700mm*700mm*2500mm
Weight 200kg

Get a Free Quote

HY-350 Three Phase Fold Water Well Drilling Rigs for Sale

Three Phase Fold Water Well Drilling Rigs for Sale
HY-350 Three Phase Fold Water Well Drilling Rigs for Sale

Technical Parameter:
Model HY-350
Opening Hole Diameter 350mm
Drilling Depth 100m
Drill Pipe Diameter φ51mm
Drill Pipe Length 1.5m
Motor Power 3kw
Pump Power 2.2kw
Voltage 380v
Lifting Force 1000kg
Size 800mm*800mm*2000mm
Weight 250kg

Get a Free Quote

Operation Procedure of Small Water Well Drilling Rigs

Choose The Location of Wells

First, you need to choose the location of the wellhead. Then use a shovel to dig a wellhead with a depth of 30-50cm and a diameter of 10-30cm. Move the installed rack to the wellhead and align it. Generally, the position of the drilling hole is required to be solid and the surface soil of the drilling hole should be dense, and there should be no brick, gravel, firewood and grass overhead, so as to avoid water seepage, landslide and sinking during the drilling operation, resulting in safety hazards.

Dig A Reservoir

Dig a reservoir with a diameter of more than 1.5 square meters and a depth of one meter at a distance of about four meters from the wellhead, of course, you can set the distance according to the actual terrain and the length of the pipe. Then use a wooden pole to hang the pressure water pump in the pool, and connect the other end of the water pump tube to the faucet of the drilling machine.

Run The Machine

Fasten the drill bit with the drill pipe link. The main controller hoist raises the nose, the other person cooperates with the drill pipe and the drill bit in the first section. Then the main controller hoist slowly lowers the nose and the other person cooperates with the hand drill pipe to slowly pass the drill bit through the base hole and put it into the wellbore. Straighten the right direction, start the rig and the pump, the drill pipe will turn into the ground. Operators need to remember is that the drill bit rotates clockwise and can’t be reversed to avoid the drill pipe being disjointed and slipped.

Change Drill Pipes

After entering the first section of the drill pipe, the helper closes the fuse and inserts the bar. Then the reverse gear to rotate the drill pipe counterclockwise, separate the lift head from the drill pipe, lift the nose. The helper needs to take another drill pipe, rotate the top wire to connect the head manually and the lower end joint is docked. The person who control the mainframe starts the machine and rotates clockwise to tighten the drill pipe. Open the insurance card, remove the drilling pipe, rotate clockwise to continue drilling. Repeat the above actions in this way and find the ideal water-bearing geological sand layer according to the depth you want.

Remove The Drill Pipe

After drilling down to the aquifer of ideal depth, record the depth of the aquifer and stop the water well drilling rigs. Open the water pump to press the water to wash sand. When there is no sand in the well, the drill pipe can be unloaded. First, close the safety buckle, insert the unloading rod card, and reverse transfer the head away from the drill pipe. Second, install the unloading road device on the machine head, fasten it, align the unload with the drill pipe on the base into the slot, rotate the buckle and lift it. When the lower end of the drill pipe rises above the fuse holder, stop it, tighten the fuse, insert the unloading rod card, turn it up, the drill pipes will be removed automatically.
