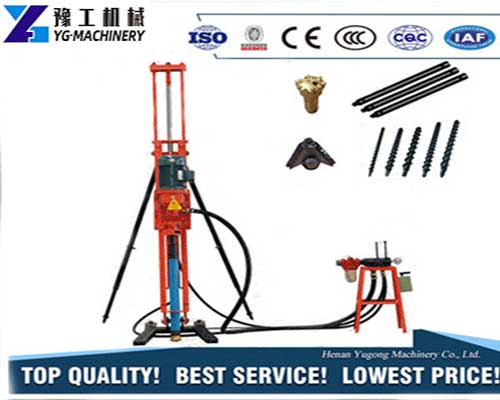

DTH Drilling Rig
DTH Drilling Rig

DTH Drilling Rig Parts
DTH Drilling Rig Parts

Down the hole drilling rig is an impact rotary drilling rig. Its internal structure is different from that of a general rock drill. The down-the-hole drilling machine is suitable for large-diameter blast hole rock drilling operations in small and medium-sized mines, road construction, water conservancy, and stonework, as well as drilling anchor holes in slope support, tunnel support, and foundation pit support. The main drilling object is a rock formation. Small size and lightweight, suitable for places where large and medium-sized rigs cannot perform operations, convenient, and flexible. Down-the-hole drilling rig adopts electric energy as power, with low noise and strong power.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Different Models of Down the Hole Drilling Rigs:

YGD-70/100 DTH Drilling Rig

YGD70/100 DTH drilling rig is a kind of compound power model, powered by a motor and compressed air. The power of the rig drilling tool rotation comes from the motor, and the impact force of the impactor comes from the compressed air. When the motor is working, the electric energy is converted into rotational torque and transmitted to the reducer, so that the drill rod connected to the reducer output shaft rotates, and the alloy drill at the front of the impactor continuously impacts the crushed and milled rock, and the broken rock is discharged from the drill exhaust, the exhausted air pressure blows to the ground.

YGD-70 Down the Hole Drilling Rig
YGD-70 Down the Hole Drilling Rig

YGD-100 DTH Drilling Rig
YGD-100 DTH Drilling Rig

Model YGD-70 YGD-100
Drilling Hole Diameter 50-90mm 90-130mm
Drilling Depth 15m 0-25m
Drilling Speed 110r/min 110r/min
Working Air Pressure 0.5-0.7mpa 0.5-1.0mpa
Air Consumption 4m³/min  6m³/min
Cylinder Diameter 90mm 140mm
Max. Propelled Force  8000N  9600N
Drilling Rod OD 42mm 50-60mm
Drilling Rod Length 1025mm 1025mm
Dimension  1740*260*420mm 2280*440*550mm
Weight 280kg 470kg

Get a Free Quote

YGQ-100 DTH Drilling Rig

The YGQ-100 DTH drilling rig is a method that uses compressed air as the power to convert compressed air into mechanical force to break rocks. The power part is an air motor. YGQ-100 can be used in the absence of electricity, which is safe and reliable.

YGQ-100 DTH Drilling Rig
YGQ-100 DTH Drilling Rig

Model: YGQ100
Drilling Hole Diameter: 90-130mm
Drilling Depth: 0-25m
Drilling Speed: 110r/min
Working Air Pressure: 0.5-1.0mpa
Air Consumption: 12m3/min
Cylinder Diameter: 140mm
Max. Propelled Force: 9600N
Drilling Rod OD: 50-60mm
Drilling Rod Length: 1025mm
Dimension: 2230*380*550mm
Weight: 450kg

Get a Free Quote

YGB-120-5.5 DTH Drilling Rig

The YGB120-5.5 cycloidal drilling rig is a combination of motors and compressed air. YGB120-5.5 cycloidal drilling rig has large torque and strong drilling capacity, which is the best choice for deep hole blasting.

YGQ-120-5.5 DTH Boring Machine
YGQ-120-5.5 DTH Boring Machine

Model: YGB120-5.5
Drilling Hole Diameter: 90-130mm
Drilling Depth: 0-40m
Drilling Speed: 110r/min
Working Air Pressure: 0.5-1.0mpa
Air Consumption: 10m3/min
Cylinder Diameter: 140mm
Max. Propelled Force: 9600N
Drilling Rod OD: 60mm
Drilling Rod Length: 1025mm
Dimension: 2230*380*550mm
Weight: 480kg

Get a Free Quote

DTH Drilling Rig Manufacturer
DTH Drilling Rig Manufacturer

Application of YG DTH Drilling Machine
Application of YG DTH Drilling Machine

DTH Drilling Machine Operating Procedures:

Rig Installation and Preparation Before Drilling:

  1. After the rig is transported to the construction site, inspect the parts for defects, and confirm that there is no damage before assembling and refueling.
  2. First, place the two front legs of the carriage in the operating position, and adjust the support rod to determine the angle of the carriage.
  3. The connection of the motor cable is to cut off the power. In principle, the connection of the motor cable should be done before the main power is turned on. After the motor power cable is connected, it should be tested to see if the direction of rotation of the motor matches the square on the controller, otherwise, the machine should be switched off immediately.
  4. Check that the bolts are tight and reliable and that the pipelines are firmly connected. No air leakage or oil leakage is allowed.
  5. An appropriate amount of 32# mechanical oil is installed in the oil mister.
  6. The handles of the pneumatic control valves are all placed in the “stop”.
  7. A no-load test run can be carried out after preparations are completed.

Handling Precautions:

  1. The operator must be trained and familiar with the operation method before operating independently.
  2. Before switching on the compressed air ( supply air), the control valve must be placed in the “stop”.
  3. The rig must be firmly supported before it can start working to prevent the rig from tipping over.
  4. During the feeding process, it is strictly forbidden to open the propulsion cylinder suddenly and quickly, so as to avoid an accident caused by jacking up the drilling rig.
  5. Always pay attention to checking the safety protection of the motor and circuit, to avoid injuries caused by leakage.
  6. Pay attention to checking the connection of each pipeline, nut, joint, etc. At any time to ensure reliability.
  7. The reverse is not allowed during drilling to prevent the drill pipe from tripping.
  8. Pay attention to whether the sound of the impactor and the operation of the machine are normal during the work of the rig. If abnormal phenomena are found, stop the machine and check immediately.
  9. When attaching the drill pipes, pay special attention to the cleanliness of the hole to prevent sand from mixing into the impactor and damaging the body.

Get a Free Quote

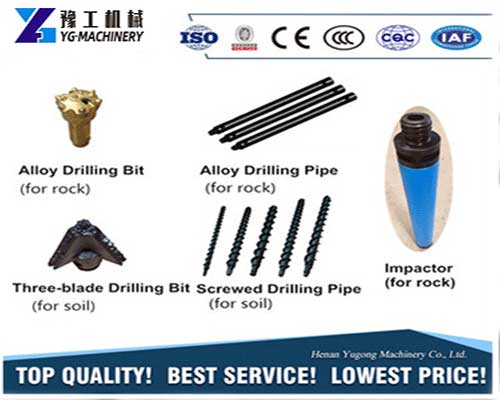

Drill Bits and Pipes of DTH Drilling Machine
Drill Bits and Pipes of DTH Drilling Machine

Parts of DTH Drilling Machine
Parts of the DTH Drilling Machine

DTH Drilling Rig Manufacturer – YG Machinery

Recently, the down-the-hole drilling rig has been the hot-selling product of YG Machinery. More and more customers choose YG brand DTH drilling rigs. According to customer feedback, this product is small in size, convenient to use, and highly efficient. It is a good partner, whether paired with a rock splitter machine or drilling rig. In addition, our other types of drilling rigs, such as horizontal directional drilling rigs, rotary drilling rigs, hydraulic pile drivers, crawler DTH drilling machines, trailer-mounted water well drilling rigs, small water well drilling rigs, hydraulic core drilling rigs, tractor water well drilling rigs, crawler mounted water well drilling rigs, anchor drilling rigs, portable air compressors, core drilling rig for mining, etc. Contact us to know more!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
