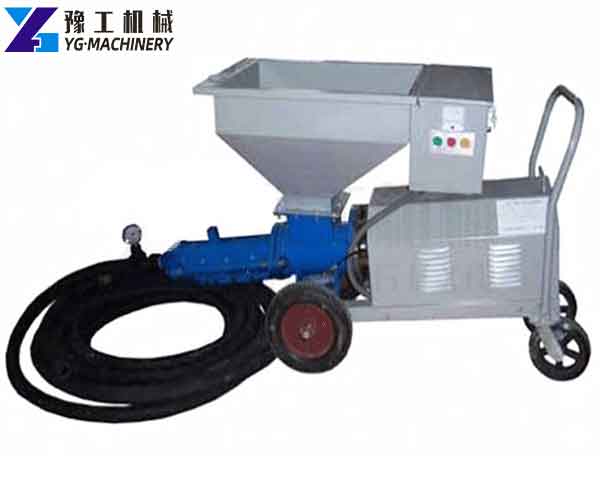

Cement Foaming Machine

A cement foaming machine is a device that can make a forming agent a certain concentration of an aqueous solution into a foam. The blowing agent itself does not automatically become a foam, it must pass the mechanical action of the foaming machine to become a foam. The foaming machine and the foaming agent are a technical system that cooperate with each other and cannot function alone. No one can do without it. Between the two, we can’t say who is the main, who is not the main, and its role is quite. Without a foaming agent, the foaming machine will not come out of the foam and lose its value. Similarly, without a foaming machine, the blowing agent is no better, it cannot be a foam, and its use is lost.

Cement Foaming Machine
Cement Foaming Machine for Sale

Get a Free Quote

Working Principle:

The working mode of the cement foaming machine is to mix the water and the foaming agent into a foaming liquid in proportion, and then foamed into the mixer by the pneumatic part in the foaming machine, and simultaneously mix the water and the cement into the mixer. The slurry is sent to the mixer, and then foam is formed into a foamed cement with the blade structure of the mixer and is advanced by the screw pump to the construction pouring position.

Composition:

The cement foaming machine is mainly composed of five parts: foaming, stirring, pumping, feeding, controller, etc. The machine adopts the latest hose pump frequency modulation pumping technology to overcome the vulnerability of the screw pump and piston pump moving parts. The disadvantages of high maintenance cost and unstable engineering quality, in which the cement foaming machine is changed from mechanical to hydraulic, the equipment takes up less space under the same conditions, the foaming effect is better, the construction efficiency is higher, and the performance is more stable.

Scope of Application:

The production of foam concrete on-site construction, foam construction dicing, lightweight wallboard, fire door core and biogas digester for floor heating and roof insulation. Foam concrete site construction/roof insulation to find slope/floor heating cushion.

  1. Sporadic home improvement floor heating construction.
  2. Small and medium area roof insulation construction.
  3. Floor heating mortar filling construction.
  4. Prefabricated thermal insulation block and core processing.
  5. Fire door core prefabrication processing.
  6. Refractory prefabrication processing.
  7. Wall filled foam concrete processing.
  8. Foam concrete insulation sporadic project.
  9. Small handicraft injection molding.

Get a Free Quote

Micro-cement Foaming Machine:

The micro-cement foaming machine is specially developed for the development of experimental new products by universities, research institutes and other scientific research institutions. It is also suitable for the construction company’s on-site construction of small projects, such as bathroom backfilling, floor cushioning, foaming per hour. Cube, with the use.

Micro Cement Foaming Machine
Micro Cement Foaming Machine

Parameter:

Model YG-10
Weight 36kg
Voltage 220V
Capacity 1.5 KW
Pressure 0.8Mpa
Package Size 700*480*600

Get a Free Quote

Small Cement Foaming Machine:

The small cement foaming machine is a special equipment for the production of foam. It is foamed 30 cubic meters per hour. It is used for the development of experimental new products for research institutes, research institutes and other scientific research institutions. It is suitable for the heating mat of the on-site construction of the decoration company. It is more efficient to use the special mixer for small foam concrete foam concrete produced by our company.

Small Cement Foaming Machine
Small Cement Foaming Machine

Parameter:

Model YG-20
Weight 70kg
Voltage 380V
Capacity 3-phase power 3 kW, 2-phase power 4.5 kW
Pressure 0.8Mpa
Package Size 1150*820*960

Get a Free Quote

Medium Cement Foaming Machine:

The medium-sized cement foaming machine is specially designed and produced for the production of light-weight blocks, lightweight partition boards, fire door core boards, fire isolation belts, garden rockeries, etc., with large output and high efficiency, foaming every hour. 50-60 cubic meters, with the use.

Medium Cement Foaming Machine
Medium Cement Foaming Machine

Parameter:

Model YG-30
Weight 170kg
Voltage 380V
Capacity 4KW
Pressure 1.6Mpa
Package Size 1200*700*760

Get a Free Quote

Large Cement Foaming Machine:

The large-scale cement foaming machine is specially designed for the production of integrated houses and large-scale prefabricated components. It is designed in large quantities for the production of foamed cement products in the factory. The output is large and the efficiency is high. Foaming 80-100 cubic meters per hour, with the use.

Large Cement Foaming Machine
Large Cement Foaming Machine

Parameter:

Model YG-40
Weight 260kg
Voltage 380V
Capacity 5.5KW
Pressure 1.6Mpa
Package Size 1260*760*760

Get a Free Quote

Product Performance:

  1. Adopt frequency conversion speed control to accurately control product weight.
  2. The double-cylinder full hydraulic pushing mechanism is used to pump the cement slurry, and the outlet pressure is high, which can meet the needs of high-rise buildings.
  3. The electrical box is easy to operate, all functions can be controlled arbitrarily, and it is easy to learn.
  4. The ratio of various ingredients is automatically controlled, and the density of foamed cement is easy to adjust.
  5. The measurement of foaming agent adopts frequency conversion metering pump, which can precisely control the amount of foaming agent.
  6. Adopt high-pressure pneumatic pumping system, the output is large and the conveying height is high.
  7. Compared with other similar equipment, this equipment can save 50-100kg of cement per cubic product, greatly reducing production cost and improving economic benefits.

Main Features:

  1. Fire insulation

Foamed cement board is a Class A non-combustible inorganic insulation material with a fire endurance of more than 3 hours. It can be used on buildings to improve the fire performance of buildings. Because of its closed cell ratio of >95%, it has good thermal insulation properties.

  1. Lightweight and shock resistance

The product is light in weight, dry in volume, has a density of about 250kg/cubic, and is shock-resistant.

  1. Sound insulation

Because of the formation of a large number of independent independent bubbles, the sound absorption effect is about 5 times higher than that of ordinary concrete, and the sound insulation coefficient is greater than 45 dB.

  1. Convenient construction and high work efficiency

Convenient construction, short construction period, no sand, cement and other materials in construction. The materials are simple, efficient, small in size, occupying less resources such as site equipment, no construction waste, and no plastering after construction.

  1. Compressive strength, strong adhesion

Special fibers are used in the foamed cement board to increase the compressive strength of the foamed cement board.

  1. Non-toxic, environmentally friendly and energy-saving

Foamed cement board is mainly used as raw material for cement and fly ash. It does not burn at high temperature and is free of toxic chlorine. It is a safe and environmentally friendly material.

  1. Long life

The design life of the building is generally 50-100 years, and the life of the foamed cement board is more than 50 years, which is the same as the life of the building.

Foamed cement board has been widely used in construction of large-span industrial plants, warehouses, mainframe garages, stadiums, exhibition halls, airports, large public facilities, mobile homes and residential mezzanines, and residential wall insulation. In the middle, and overcome the difference in insulation caused by the foam insulation materials used in the past, the heat sensing rate is high, and cracks are generated.
