Trowel machine, also known as the names, power trowel for sale, concrete trowel machine, concrete trial machine, concrete finishing machine, power float machine, concrete helicopter, and concrete smoother machine, is a kind of common road machinery that can make the surface of concrete pavement much smoother. The power trowel can be widely used in the concrete surface slurry extraction, flattening, and polishing of high-standard plants, warehouses, parking lots, squares, airports, and framed buildings. There are two types of trowel machines for sale in our factory, ride-on trowel machines for sale and walk-behind trowel machines for sale. And the two models include several different sizes of machines, customers can choose the model they need based on the size of the project and the working efficiency. Pick up the equipment and send us an email for a quotation now. Also, we have road marking machines, floor shot blasters, asphalt crack filler machines, road rollers, etc. You can contact us.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

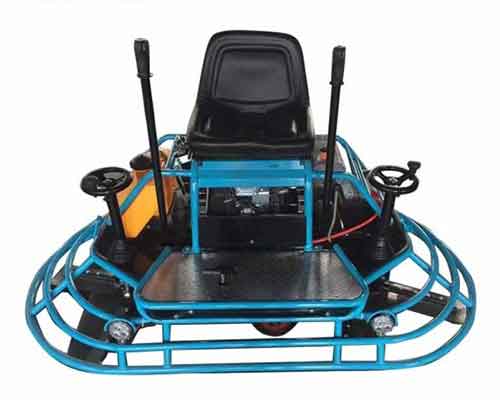

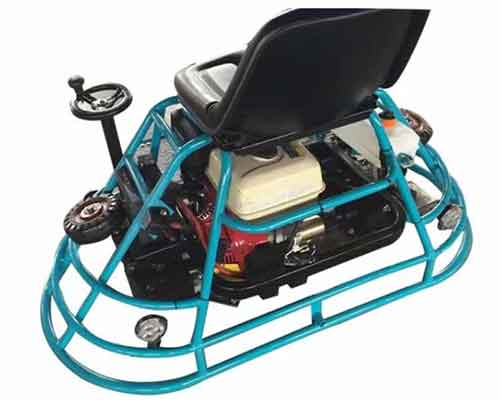

Ride-on Power Trowel Machine
Model | YG-800 | YG-900 | YG-1000 | |
Engine | Honda GX390/Lifan | Honda GX630/Lifan | Honda GX630/Lifan | |
Power | 13hp | 20hp | 24hp | |
Number of blades | 8pcs | 8pcs | 8pcs | |
Plate diameter | 800mm | 900mm | 1000mm | |
Spanner speed | 0-140 r/min | |||
Weight | 300kg | 380kg | 430kg | |
Engine speed | 3600r/min | |||
Gasoline tank capacity | 20L | |||
Operation type | Driving | |||
Trowel blade | Size | 350*150*2mm | ||
Hole pitch | 65-120mm | |||
Size | ——- | 2080*1050*1180mm |

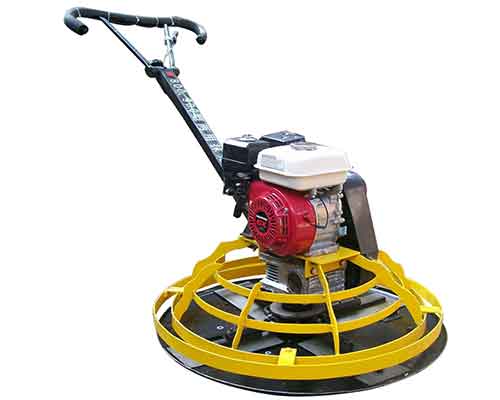

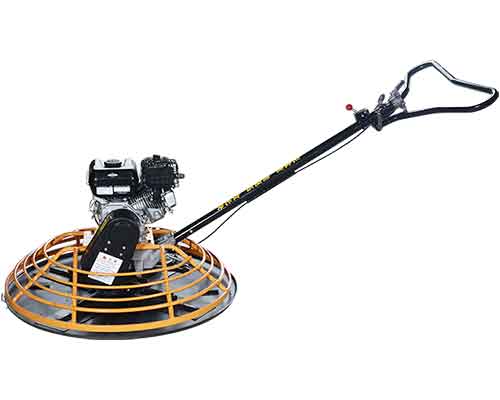

Walk-Behind Concrete Power Trowel Machine
Model | YG-600 | YG-700 | YG-800 | YG-900 |
Engine | Honda GX160 / Lifan 168F / B&S XR750 | |||
Power | 5.5HP 163cc | |||
Disc Diameter (mm) | 600 | 700 | 800 | 900 |
Disc Thickness (mm) | 2 | |||
Blade Quantity | 4PCS | |||
Blade Size (mm) | 350*150 | |||
Working Diameter (mm) | 600 | 700 | 800 | 900 |
Working Thickness (mm) | 2 | |||
Size (mm) | 670*670*690 | 780*780*690 | 900*900*690 | 1050*1050*690 |
Weight (kg) | 80 | 85 | 90 | 100 |

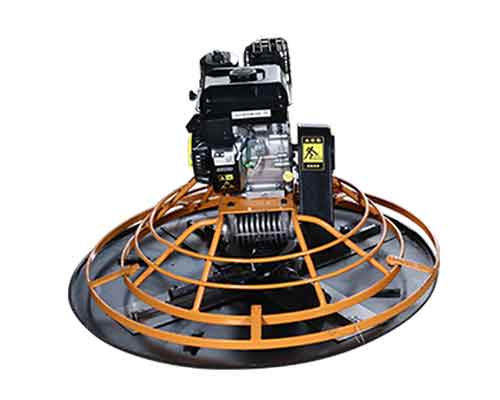

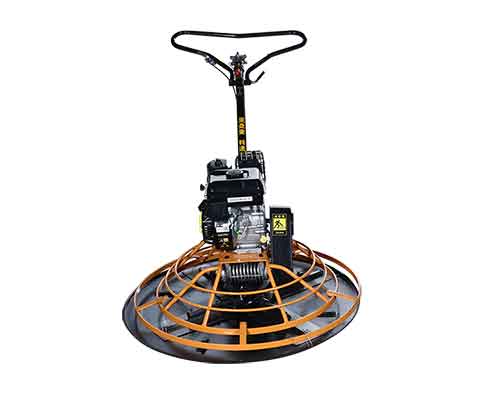

Concrete Trowel Machine for Sale
It is a kind of concrete surface roughness, a fine finishing tool that works much better and is more efficient. The concrete surface that is polished by concrete trowel machines will be much smoother and more even than artificial construction. It can also greatly improve the compactness and abrasion resistance of the concrete surface and its working efficiency is more than ten times higher than that of manual work. It is an indispensable equipment in construction equipment. If you have the need to purchase a concrete trowel machine for sale and some other types of road construction machinery, such as thermoplastic road marking machine, cold paint road marking machine, floor shot blasting machine, floor scarifying machine, road rollers, concrete curb machine, electric snowblower, electric road sweeper, etc… please feel free to contact us for more details.【Whatsapp/Wechat/Phone/Skype】+86 136 1385 6800
Concrete Trowel Types
The concrete trowel machine can be divided into walk-behind the trowel machine and ride on the trowel machine according to different operating ways. And the power can be electric and diesel engine. The diameter of the trowelling plates of 80mm, 900mm, and 1000mm is the most typical of the machine on the market. You can choose a suitable model depending on the working efficiency.

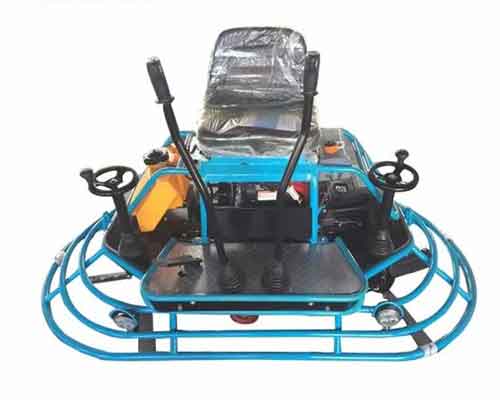

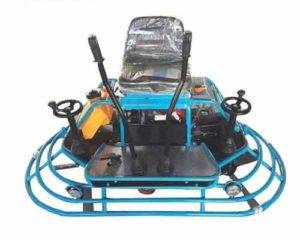

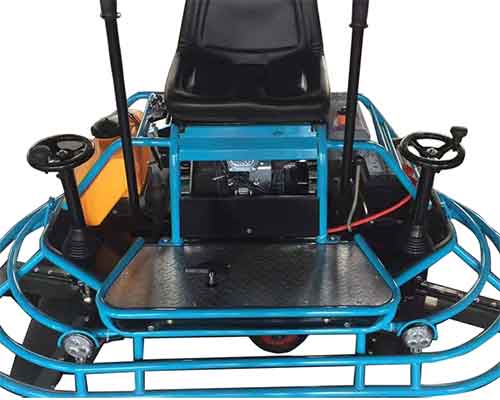

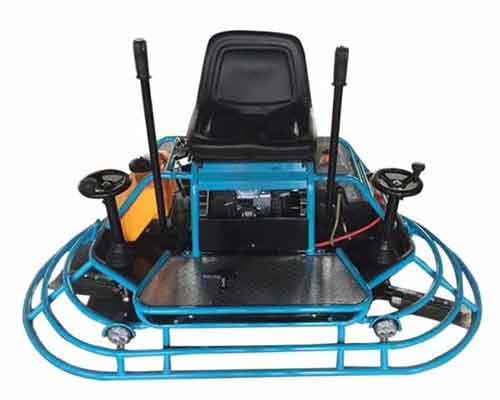

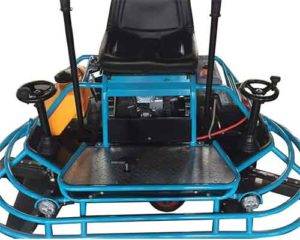

The 10 Advantages of Ride-on Trowel Machine for Sale
- The driving operation can greatly reduce labor intensity and improve work efficiency.
- Two trowelling plates can be installed at the same time for rapid slurry extraction.
- Double-sided ten blades, with a deadweight of 430kg, make it have a better compaction effect on the ground.
- Mechanical steering, the operating system is responsive which makes it easy and comfortable to operate. Meanwhile, it has the variable gear.
- The high-grade trowelling plate speed can be up to 180 revolutions per minute, which makes the finish faster and the effect better. In addition, low speed can make the trowelling plates more powerful.
- Be equipped with a high-horsepower electric start engine that can provide strong and reliable power.
- There is a safety cut-off switch that can shut down the engine quickly to ensure safety.
- The control screw can adjust the blade Angle.
- The water spray projector systems and lighting design can make construction more convenient.
- The wheels can be lifted up and down, which makes it easy to walk.

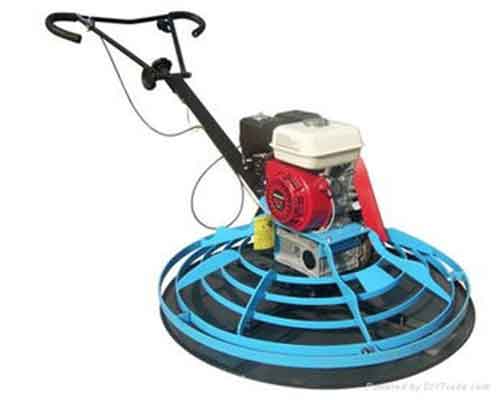

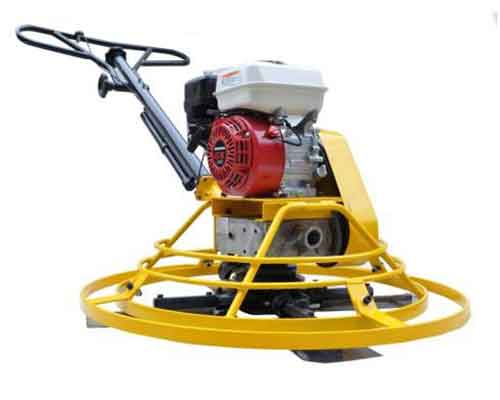

Walk-Behind Trowel Machine for Sale
Compared with the ride-on trowel machine, walking behind a trowel machine may be a little laborious, but it’s still a very popular model. The machine is compact, flexible, and easy to operate. The most important is that its work efficiency is dozens of times as much as the artificial finishing. In addition, the price is lower. So the walk-behind trowel machine for sale is a good choice for some small projects.
How to Use A Power Trowel to Finish Concrete
- First, clean the floor and ensure there is no standing water. Then brush approximately 2mm thick plain cement for the bonding layer.
- Second, pour the fine stone concrete onto the ground base of the well-brushed plain water mud. Spread it with a small square spatula, the spreading thickness should be limited to 15 to 20mm.
- After scaling the fine stone concrete coating, the dry sand dust will be uniformly spread on the surface which is about 2mm thick. When the dry sand absorbs water in a humid state, operators can use the concrete finishing trowel machine to polish the ground.
- In general, we need to use the trowel machine twice. In the process of the first polish, if there is no slurry or dry crack in some places, please sprinkle dry sand ash or a little water immediately. At the same time, the interior corner position should be assisted with an artificial dressing corner. The second time, operators should move the machine from the room to the door slowly.
The Structures and Working Principles of Trowel Machine
This machine is mainly composed of a moving handle, screw lifting, motor, worm gearbox, and smear assembly. It uses a unique startup method. The motor is decelerated by the three-stage gear, through two relatively rotating output shafts, respectively driving the relatively rotating double trowel. Under the action of mechanical gravity, the float is pressed to the ground to complete the compaction and polishing process.
Things Need to Pay Attention in Operation:
- Please check whether the motor, switch, and cable meet the safety requirements before the operation. Connect the cable zero line to the small box cover of the speed reducer box to prevent leakage of electricity.
- After connecting the cable line, please turn over the power trowel machine to make the trowelling plate suspended. Then turn on the switch to check if the float is rotating in the right direction.
- Check whether the bolts on the trowelling plate, safety cover, and other parts are loose.
- To ensure the flatness of the ground, operators should wear flat shoes.
- After finishing the work, the residual mortar on the machine should be removed in time, and the connecting screw of the trowelling plate and the trowelling device should be wiped clean and coated with butter for protection.
