Steel Bar Cutting Machine

Steel Bar Cutting Machine for Sale in Yugong Machinery
                                                                   Steel Bar Cutting Machine for Sale in Yugong Machinery

The steel bar cutting machine is a very common rebar processing machinery, which is widely used in the cutting work of various types of steel bars. The rebar cutter for sale in YG Machinery is produced according to the JG/T5085-1996 standard and is suitable for the cutting of ordinary carbon steel, hot rolled round steel, and deformed steel bars in varieties of reinforced concrete construction projects, as well as flat steel, square rebar, and angle reinforcement bars. Steel bar-cutting machines are the most widely used and ideal steel-cutting equipment in the construction and machinery industry, such as for buildings, airports, tunnels, culverts, bridges, and other projects. Different kinds of steel bar cutting machines in our company with high quality and reasonable price will be your ideal choice. Contact us for a quotation now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Technical Parameter of Steel Bar Cutting Machine:

Model Technical Parameter




YG-40/YG-40S

Motor Power(kW) 2.2
Rebar Diameter(mm) 6-25
Round Bar Diameter(mm) 6-26
Cutting Number(times/min) 32
Weight(kg) 300
Dimension(mm) 1200*310*630




YG-40A

Motor Power(kW) 3
Rebar Diameter(mm) 6-28
Round Bar Diameter(mm) 6-35
Cutting Number(times/min) 32
Weight(kg) 330
Dimension(mm) 1310*460*760




YG-40B

Motor Power(kW) 3
Rebar Diameter(mm) 6-32
Round Bar Diameter(mm) 6-35
Cutting Number(times/min) 32
Weight(kg) 350
Dimension(mm) 1310*460*760




YG-42

Motor Power(kW) 3
Rebar Diameter(mm) 6-32
Round Bar Diameter(mm) 6-40
Cutting Number(times/min) 32
Weight(kg) 380
Dimension(mm) 1330*460*790




YG-45

Motor Power(kW) 4
Rebar Diameter(mm) 6-32
Round Bar Diameter(mm) 6-40
Cutting Number(times/min) 32
Weight(kg) 400
Dimension(mm) 1330*460*790




YG-50

Motor Power(kW) 4
Rebar Diameter(mm) 6-40
Round Bar Diameter(mm) 6-45
Cutting Number(times/min) 28
Weight(kg) 480
Dimension(mm) 1410*460*810




YG-40 Straight Thread Rebar

Motor Power(kW) 3
Rebar Diameter(mm) 6-28
Round Bar Diameter(mm) 6-35
Cutting Number(times/min) 32
Weight(kg) 370
Dimension(mm) 1330*460*790




YG-45 Straight Thread Rebar

Motor Power(kW) 4
Rebar Diameter(mm) 6-32
Round Bar Diameter(mm) 6-40
Cutting Number(times/min) 32
Weight(kg) 410
Dimension(mm) 1330*460*790




YG-50 Straight Thread Rebar

Motor Power(kW) 4
Rebar Diameter(mm) 6-40
Round Bar Diameter(mm) 6-50
Cutting Number(times/min) 28
Weight(kg) 510
Dimension(mm) 1410*460*810




YG-50 Angled Steel Bar

Motor Power(kW) 4
Angled Bar Diameter(mm) ≤100*100*10
Cutting Number(times/min) 28
Weight(kg) 580
Dimension(mm) 1440*460*810




YG-50 Flat Steel Bar

Motor Power(kW) 4
Flat Bar Diameter(mm) 150*10
Cutting Number(times/min) 28
Weight(kg) 580
Dimension(mm) 1440*460*810

Get a Free Quote

Types of Steel Bar Cutting Machines

There are generally automatic steel bar-cutting machines and semi-automatic steel bar-cutting machines. An automatic steel bar cutting machine can also be called an electric rebar cutter, which is a model in which the electric energy is converted into kinetic energy by a motor to control the cutting edge and achieve the effect of shearing steel bars. The semi-automatic steel bar cutting machine is a kind of manual steel bar cutter that is usually manually controlled to cut the steel bar. The most commonly used now is the hydraulic steel bar cutter, which can be divided into the recharge model and portable steel cutting machine.

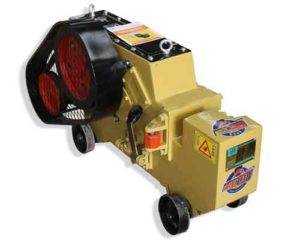

Electric Automatic Steel Bar Machine

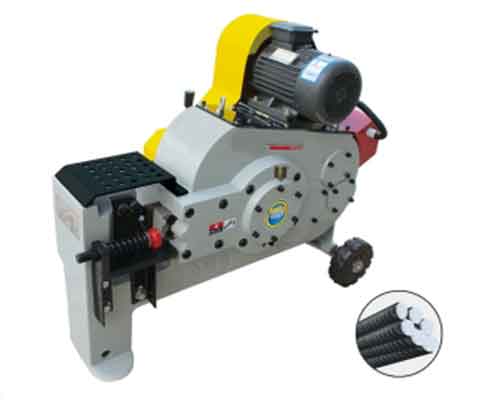

Rebar Cutter for Various Steel Bars

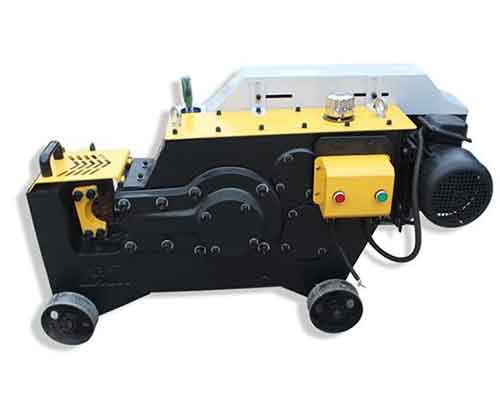

Reinforced Bar Cutting Machine

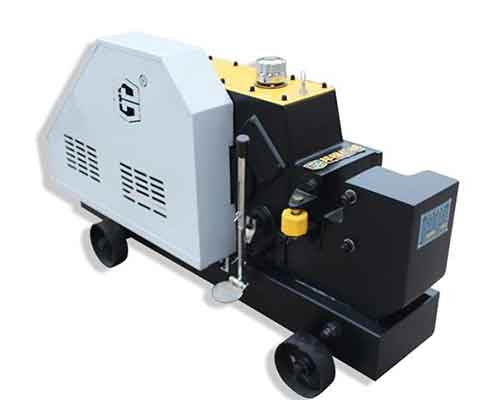

Rebar Cutter for Sale

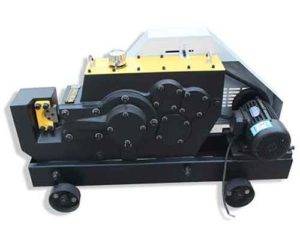

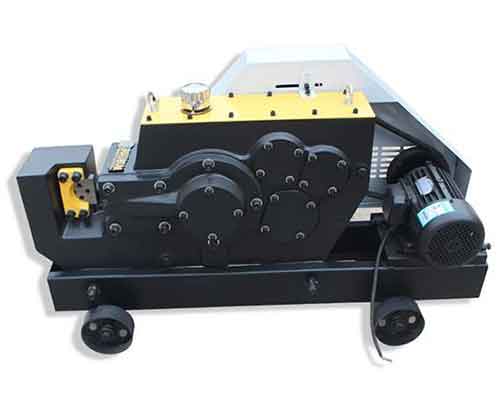

High Quality Steel Bar Cutting Machine with Reasonable Price
Electric Automatic Steel Bar Machine Rebar Cutter for Various Steel Bars Reinforced Bar Cutting Machine Rebar Cutter for Sale High Quality Steel Bar Cutting Machine with Reasonable Price

Get a Free Quote

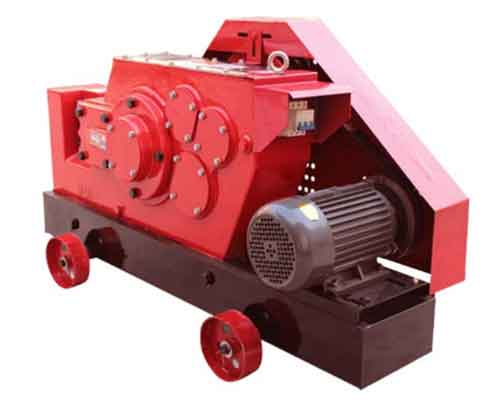

Hydraulic Electric Rebar Cutting Machine

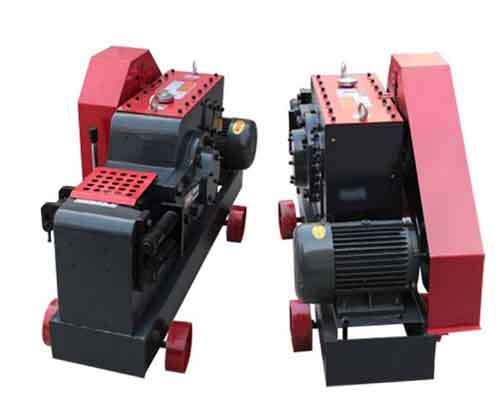

Automatic Steel Bar Cutting Machine

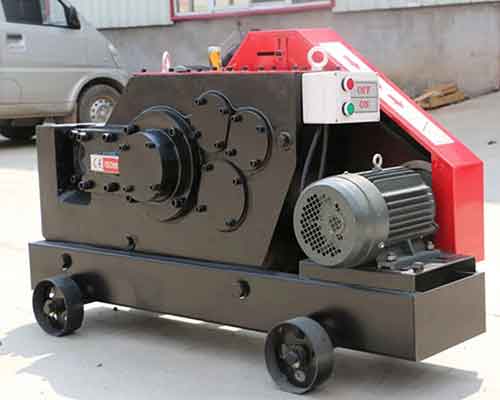

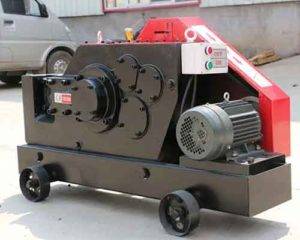

Rebar Cutting Machine

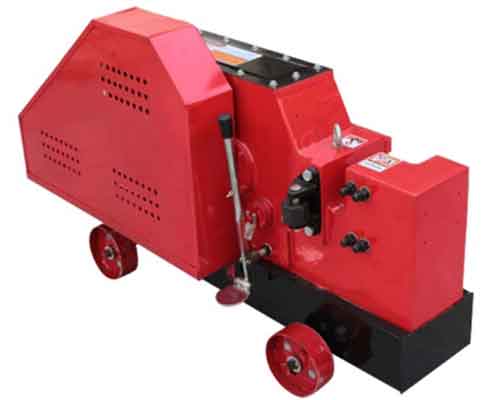

Automatic Rebar Cutting Machine for Sale

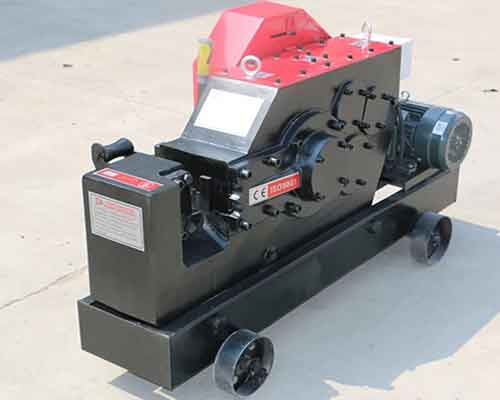

Steel Bar Cutting Machine for Sale
Hydraulic Electric Rebar Cutting Machine Automatic Steel Bar Cutting Machine Rebar Cutting Machine Automatic Rebar Cutting Machine for Sale Steel Bar Cutting Machine for Sale

Get a Free Quote

Different Types of Steel Bars The Machine can Cut
Different Types of Steel Bars The Machine can Cut

Get a Free Quote

The 7 Features of Steel Bar Cutting Machine in YG Machinery:

  1. Small volumes and lightweight make it convenient to transport and move.
  2. The compact and reliable structure makes it very easy to operate.
  3. Lubricity is good, the use of a box-closed structure can achieve gear splash lubrication.
  4. Long operation time that refueling can be continuous operation for more than one month.
  5. Small function loss. The lubrication condition has been improved and the gear shaft uses the rolling bearing which has a small resistance. Compared with a similar cutting machine, the power can be reduced by one-third.
  6. Easy to move and maintain, for it is equipped with movable casters.
  7. The machine is equipped with high-quality components.

11 Safety Operation Procedures of Steel Bar Cutting Machine

  1. The lower part of the working table for picking up materials should be kept horizontal, and the length of the working table can be determined according to the length of the processing materials. When processing long steel bars, there should be special personnel to help and follow the instructions of operators. Please don’t push and pull at will.
  2. Before starting, it is necessary to check that there should be no cracks in the cutter, the bolts of the knife holder should be tightened, and the protective cover is firm. Then operators should turn the pulley by hand to check the gear meshing clearance and adjust the cutter clearance.
  3. After starting, the machine should be operated first without steel bars to check whether the transmission parts and bearings are running normally.
  4. Cutting can only be done when the machine reaches normal speed. Please use the middle and lower parts of the cutter when cutting. Steel bars should be fed into the knife edge quickly and the operators should press the steel bar on the side of the fixed blade to prevent the end of the steel bars from ejecting and injuring people. Don’t use two hands to hand the steel bar on both sides of the blade and bend over to feed the material.
  5. Don’t cut steel bars with a diameter and strength that exceed the range of the machine and red-hot bars. When cutting multiple steel bars at a time, the total cross-sectional area should be within a particular range.
  6. Please use high high-strength cutter when cutting low alloy steel and the shear diameter should conform to the mechanical nameplate regulations.
  7. When cutting the short material, the distance between the hand close to the blade and the blade should be kept above 150mm. If the holding end of the hand is less than 400mm, the short end of the steel bar should be clamped by a sleeve or fixture.
  8. During operation, it is prohibited to directly eliminate the broken head and sundries near the hand, and non-operators near the blade are not allowed to stay around the steel bars.
  9. When the machine operation is found abnormal or the blade skews, it should be stopped immediately for maintenance.
  10. Only when the power is cut off and the machine is shut down can maintenance be carried out.
  11. After the operation, the power should be cut off. Then please use the steel brush to eliminate the debris between the cutters, and the whole machine should be cleaned and lubricated.

Get a Free Quote

Rebar Cutting Machine Price – YG Machinery Manufacturer

As a professional manufacturer of various types of small machinery, the production of steel bar processing machinery is our main business, including rebar threading machines, rebar upsetting machines, rebar bending machines, steel bar cold extrusion press machines, threaded rebar couplers, rebar straightening cutting machines, beam bending machines, punching and shearing machines, pipe shrinking machines, rebar de-rusting machines, etc… In addition to the production of reinforced steel machinery,  we can also manufacture various kinds of small road machinery, such as mini rod rollers, floor shot blasters, road marking machines, and so on, cutting machines for hydraulic rock splitters, pile breaker machines, hydraulic wall saw machine, water well drilling machine for drilling water, borehole, exploration, as well as some other construction machinery. If you would like to purchase a steel bar-cutting machine, you can send us an email from this page for a quotation now. If you are interested in other kinds of machinery in our company, you can visit the appropriate page to check more or contact us directly.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
