Crawler Mounted Water Well Drilling Rigs

Crawler Mounted Water Well Drilling Rigs for Sale

The crawler-mounted water well drilling rigs for sale in YG Machinery are light, efficient, and multi-functional drilling equipment, which uses diesel engines as the power. The machine is mainly suitable for drilling wells, agricultural irrigation wells, and wells for other uses, especially for mountainous areas and rock formation water intake engineering. This series of crawler-mounted water well drilling rigs produced by us adopts new hydraulic technology, which is equipped with high-torque hydraulic motor rotation and large-bore hydraulic cylinder advancement. Advanced hydraulic technology greatly improves the drilling speed and working efficiency. All this kind of drilling machine needs to be used with air compressors. There are several models of a crawler drilling rig with different specifications. You can choose a suitable model according to your requirements and the technical parameters of our machine. You can also find many other kinds of water well drilling rigs for sale in our company.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

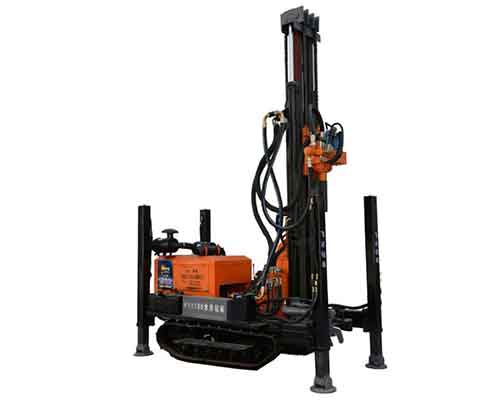

Crawler Mounted Water Well Drilling Rig

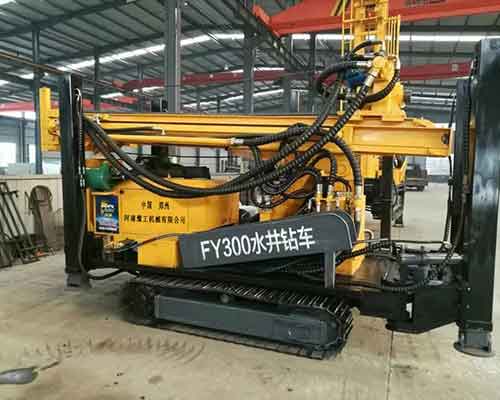

Hydraulic Crawler Water Well Drilling Rigs

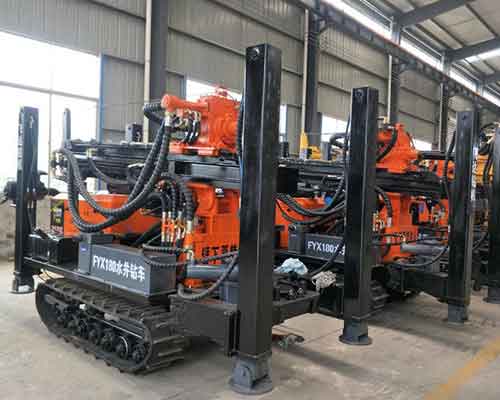

Crawler Water Well Drilling Rigs for Sale

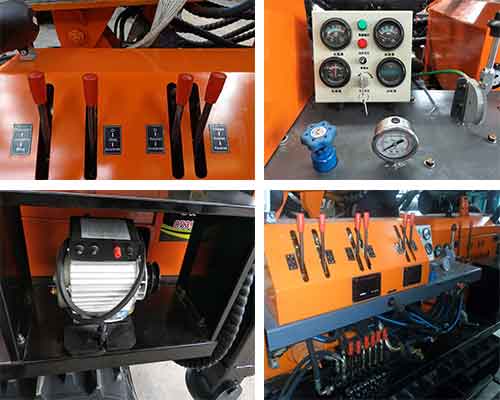

Details of FYX-180 Crawler Well Drilling Machine

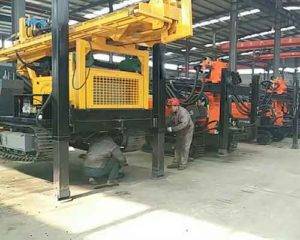

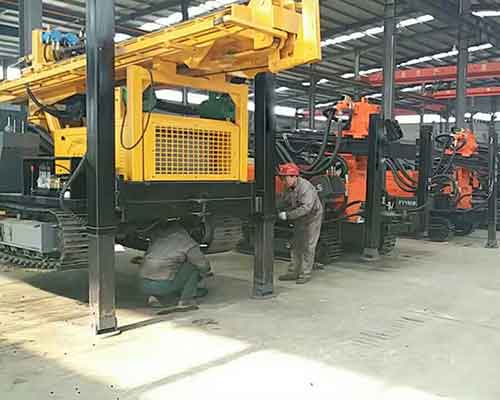

Drilling Rig Machine Workshop

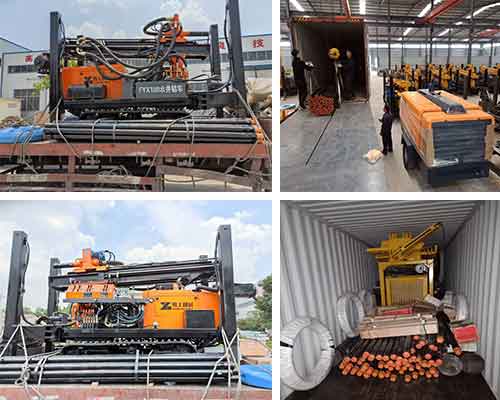

Package and Transportation of FYX-180 Crawler Water Well Drilling Equipment
Crawler Mounted Water Well Drilling Rig Hydraulic Crawler Water Well Drilling Rigs Crawler Water Well Drilling Rigs for Sale Details of FYX-180 Crawler Well Drilling Machine Drilling Rig Machine Workshop Package and Transportation of FYX-180 Crawler Water Well Drilling Equipment

Get a Free Quote

Technical Parameter of Crawler Mounted Water Well Drilling Rigs for Sale

Model YG-180 YG–200 YG–300 YG–300A YG–400 YG–600
Drilling hole diameter 140-254mm 140-305mm 140-325mm 140-325mm 140-350mm 140-350mm
Drilling depth 180m 200m 300m 300m 400m 600m
One-time advance length 3.4m 3.4m 6.6m 3.4m 6.6m 6.6m
Walking speed 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h
Climbing angles (Max.) 30 30 30 30 30 30
Equipped capacitor 55kw 65-70kw 84kw 75.8kw 92kw 115kw
Using air pressure 1.7-2.5mpa 1.7-3.0mpa 1.7-3.3mpa 1.7-3.0mpa 1.7-3.5mpa 1.7-3.5mpa
Air consumption 17-31m³/min 17-30m³/min 17-35m³/min 17-35m³/min 17-35m³/min 17-35m³/min
Drill pipe length 1.5m, 2.0m, 3.0m 1.5m, 2.0m, 3.0m 1.5m, 2.0m, 3.0m,6.0m 1.5m, 2.0m, 3.0m 1.5m, 2.0m, 3.0m,6.0m 1.5m, 2.0m, 3.0m,6.0m
Drill pipe diameter 76mm, 89mm 76mm, 89mm 89mm, 102mm 76mm, 89mm, 102mm 89mm,102mm,108mm 102mm,108mm,114mm
Rig lifting force 15t 12t 20t 16t 22t 28t
Swing speed 45-65rpm 45-70rpm 45–115rpm 40–70rpm 45-115rpm 45–115rpm
Swing torque 3200-4600(N.m) 3500-4800(N.m) 6200-8500(N.m) 5700-7500(N.m) 6500-9000(N.m) 8500-11000(N.m)
Dimension 3800*1500*2200mm 4000*1750*2450mm 5900*2000*2850mm 4100*1950*2600mm 5900*2100*2850mm 6000*2200*2850mm
Weight 4500kg 5800kg 9000kg 7000kg 10000kg 12000kg

Get a Free Quote

Crawler Mounted Water Well Drilling Rigs Manufacturer – YG Machinery

YG Machinery has always been a company that provides the best service to customers. The machine has good quality, long service life, and a better price than other factories. It has a professional after-sales team to solve customers’ worries. We not only have crawler-type water well drilling rigs but also trailer and tractor-type water well drilling rigs, which can be easily moved. There are also popular core drilling rigs and small water well drilling rigs suitable for small projects or home use. And horizontal direction drilling rigs, rotary drilling rigs, crawler DTH drilling rigs, anchor drilling rigs, water detector machines, hydraulic pile drivers, core drilling rigs for mining, full hydraulic core drilling rigs, etc. In our company, there must be a water well drilling rig suitable for you, contact us for more information!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
