Trailer Mounted Water Well Drilling Rigs for Sale

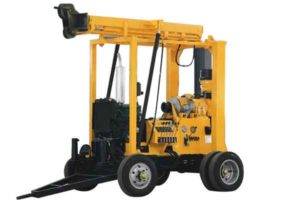

XYX-3 Tractor Mounted Water Well Drilling Machine

Get a Free Quote

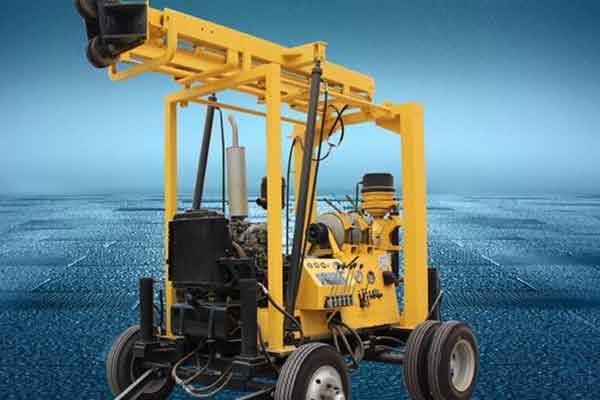

The XYX-3 trailer-mounted water well drilling rig for sale in YG Machinery is a kind of self-propelled drilling rig that is very portable to move. The machine can be used as both a water well drilling rig and a core drilling rig machine. It is an updated model of XY-3 spindle type core drilling rig that our engineers install the wheeled walking device based on the original equipment which doesn’t need to be loaded and unloaded from the truck and can save the workers’ labor, improving the working efficiency. 【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

The 6 Outstanding Advantages of XYX-3 Trailer Mounted Water Well Drilling Rigs for Sale:

The model is equipped with a wheeled traveling mechanism and hydraulic cylinder stanchion, which makes the whole machine convenient to move and facilitates the horizontal adjustment of the drilling rig machine.
The rising and falling tower is a hydraulic operation that is more convenient and reliable.
Diesel Engine adopts an electric start which can help reduce the labor intensity of workers.
The hydraulic automatic feeding mechanism can improve drilling efficiency.
Pressure gauges at the bottom of the bore indicate the pressure for easy inspection of the inside of the bore.
Widely used. Geological exploration, road, and high-rise building foundation exploration and various concrete structure inspections, river embankment grouting hole drilling and direct grouting, civil well, and foundation central air conditioning hole drilling.

Get a Free Quote

Technical Parameter of XYX-3 Trailer Mounted Water Well Drilling Rigs:

Technical Parameter	Model	XYX-3
	Drilling Depth (m)	600
	Open Hole Diameter (mm)	325
	Final Hole Diameter(mm)	75
	Drill Pipe Diameter(mm)	60
	Drill Pipe Inclination (°)	90-75
	Power (kW)	13.2
	Weight (kg)	3600
	Dimensions(mm)	290025603300
Spindle	Speed(r/min)	32-1057
Spindle	Stroke(mm)	600
Winch	Max Pull Force(kg)	3000
	Pull Speed(m/min)	0.3-1.9
	Rope Diameter(mm)	12.5
	Roll Capacity(m)	65
Drill Mast	Rated Load(ton)	18
Drill Mast	Height(m)	6.5
Mud Pump	Mud Pump	BW-250
	Work Pressure	80kg/cm²
	Displacement(L/min)	250
Hose	Inlet Hose Diameter(mm)	76
Hose	Outlet Hose Diameter(mm)	51

Get a Free Quote

Buy Trailer Mounted Water Well Drilling Rigs in YG Machinery

The drilling rig series of YG Machinery is one of the best-selling products. At present, customers all over the world are using YG brand drilling rigs to complete their projects or use them for household water, which solves the water problem of people in many countries and helps them solve a big problem.
Last week, we received feedback from customers that our drilling rig for sale in the Philippines, and the machine is very simple to operate. According to the recommendation of our professional managers and technicians, it is very suitable for their needs. Of course, this allows them to complete projects faster and achieve higher income. At present, he has taken on other drilling projects, which makes him very happy, and he wants to buy multiple drilling rigs and work at the same time so that he can earn more money. If you also want to get benefits faster, please contact us. In addition, we also have other types of drilling rigs, crawler water well drilling rigs, tractor water well drilling rigs, small water well drilling rigs, hydraulic core drilling rigs, crawler DTH drilling rigs, horizontal direction drilling rigs, rotary drilling rigs, anchor drilling rigs, hydraulic pile drivers, down the hole drilling rigs, core drilling rig for mining, portable air compressors, full hydraulic core drilling rigs, etc.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
