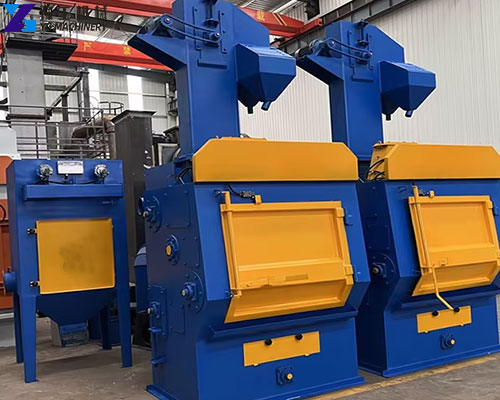

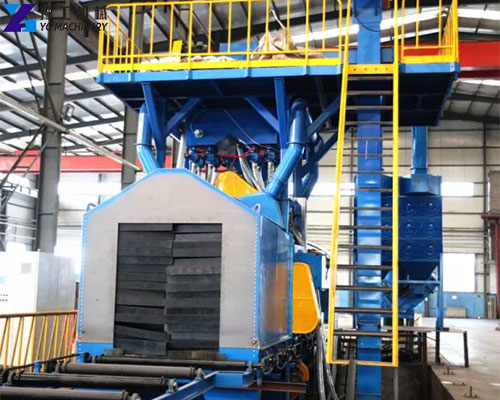

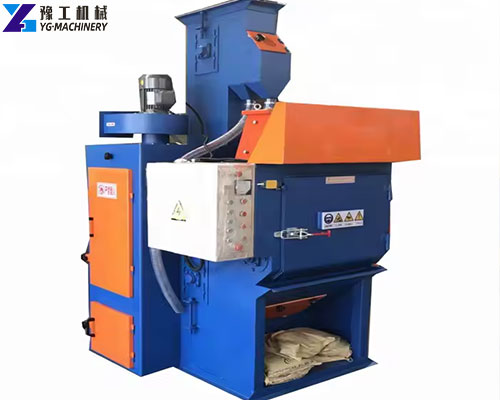

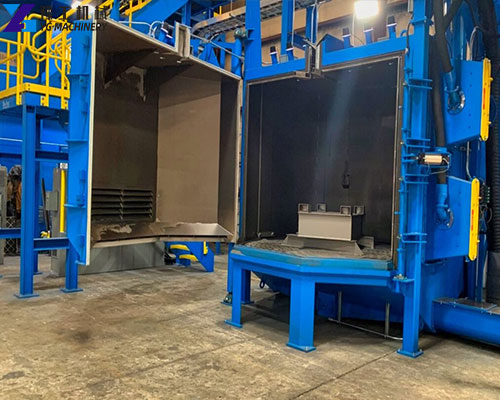

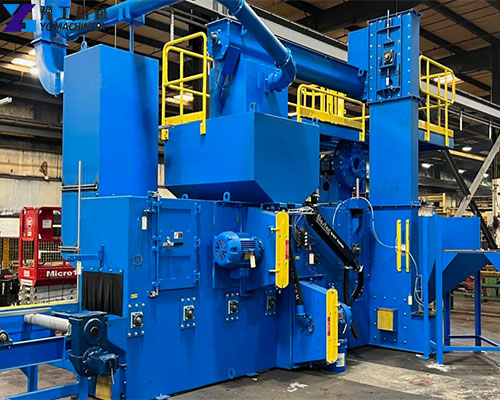

Vertical Shot Blasting Machine

Vertical shot blasting machine is an industrial equipment used to clean, remove rust, deburr, or strengthen the surface of workpieces. It adopts a vertical structure design, and sprays abrasives (such as steel shot, steel grit) onto the surface of the workpiece through a high-speed rotating shot blaster or a compressed air-driven spray gun, and uses the impact force of the abrasive to remove surface pollutants, thereby achieving the desired surface treatment effect. This type of equipment usually has the advantages of a high degree of automation, fast processing efficiency, and uniform surface treatment. It is widely used in the automobile, steel structure, casting, and other industries to improve product quality and production efficiency. If your project requires shot blasting machine, please feel free to contact us and give you a customized solution.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Vertical Shot Blasting Machine Parameter:

Model YG-270(Single) YG550/600(Double) YG-850(Double)
Shot Blasting Wheel Diameter 200mm
Working width 270 mm 550/600 mm 800 mm
Walking speed 0.5~20 m/min 0.5~33 m/min
Concrete surface cleaning efficiency ≥180 m2/h ≥400 m2/h ≥600 m2/h
Steel plate surface cleaning efficiency 15-25 m2/h 75-100 m2/h 100-160 m2/h
Dust connection pipe diameter 120 mm



 150 mm
Suggest the diameter of steel balls 1.2-1.5 mm 1.5-1.8 mm
Steel pill consumption 10 g/m2
Supporting the dust collector Seven-core automatic backflush vacuum cleaner Eight-core automatic backflush vacuum cleaner
Shot wheel motor Power consumption 11 kW 11*2 kW 15*2 kW
Input Current ≤ 15 A ≤ 22*2 A ≤ 28*2 A
Walking motor Power consumption 0.5 kW 1.5 kW
Input Current 1 A 3 A
Size (mm) 1000*300*1100 1950*720/775*1400 1950*1020*1550
Weight 150 kg 570 kg 700kg
Power connection requirements 400V, 50Hz, 100A, CEE socket

Get a Free Quote

Application of Vertical Shot Blasting Machine:

  1. Vertical concrete wall treatment: used to clean, remove slurry, stains, old coatings on concrete walls, or roughen for subsequent painting.
  2. Surface treatment of inclined ramps or walkways: can be used to treat parking ramps, pedestrian bridge slopes, etc., to remove oil and moss, increase surface friction, and improve safety.
  3. Inner wall treatment of large storage tanks or silos: used to clean rust, residues or old coatings on the inner walls of storage tanks or silos to prepare for new coatings.
  4. Building facade cleaning and renovation: can be used to clean dirt and weathering on the exterior walls of buildings, or remove old paint to prepare for exterior wall renovation.
  5. Surface treatment of special structures: For example, vertical or inclined concrete or metal structures, such as bridge piers and tunnel inner walls, may require similar sandblasting for cleaning and maintenance.

Get a Free Quote

2 Cases and Feedback from Different Countries Using Shot Blasting Machines:

Case 1: Müller Automotive GmbH, a German automotive parts supplier

  • Customer background: Müller Automotive GmbH is a well-known automotive parts supplier located in Stuttgart, Germany, mainly producing precision parts such as engine blocks and cylinder heads. They have been committed to improving production efficiency and product quality to meet stringent industry standards.
  • Problems solved by using the product: Before introducing the YG vertical sandblasting machine, Müller Automotive used the traditional manual sandblasting process, which had problems such as uneven surface treatment and low efficiency, which seriously affected the subsequent coating adhesion and production cycle.
  • Effect: After comprehensive evaluation and testing, Müller Automotive finally chose YG’s automated vertical sandblasting machine. After the equipment was put into use, the surface cleanliness and consistency of the engine block were significantly improved, and the coating defect rate was reduced by 18%. Automated operation also greatly reduced manual intervention and increased production efficiency by 35%.
  • Customer evaluation (provided by Klaus Weber, Production Manager of Müller Automotive GmbH): “We are very satisfied with YG’s vertical sandblasting machine. It not only solves our long-standing surface treatment problems, but also exceeds our expectations with its stable and reliable performance and efficient automation. Now, the surface quality of our products has been significantly improved, and the feedback from customers is also very good. YG’s equipment and technical support are trustworthy!”

Case 2: A Canadian steel structure manufacturing company – CanSteel Structures Inc.

  • Customer background: CanSteel Structures Inc. is a leading steel structure design and manufacturing company in Canada, providing high-quality steel structure products for various construction and infrastructure projects. They have very strict requirements for the surface treatment of steel to ensure the durability and safety of the structure.
  • Problem solved by using the product: When CanSteel Structures handles large steel beams and steel columns, the traditional sandblasting method is time-consuming and labor-intensive, and it is difficult to meet the growing production needs. They have been looking for a more efficient and reliable solution.
  • Usage effect: After many investigations, CanSteel Structures finally chose YG’s heavy-duty vertical sandblasting machine. The equipment can quickly and effectively remove rust and scale from the surface of steel, and the processing speed is nearly 50% higher than that of traditional methods. At the same time, the closed design also improves the working environment and reduces dust pollution.
  • Customer evaluation (provided by Pierre Dubois, Operations Director of CanSteel Structures Inc.): “YG’s vertical sandblasting machine is key equipment for us to improve production efficiency. It has a very fast processing speed and very good results, which fully meet our strict requirements for the surface treatment of steel structures. More importantly, it helps us save a lot of labor costs and improves the working environment for workers. We are very satisfied with YG’s products and services and strongly recommend them to our peers!”

Get a Free Quote

Vertical Shot Blasting Machine for Sale – YG Machinery

As an efficient surface treatment equipment, vertical shot blasting machine plays a key role in many fields such as shipbuilding, construction, and machinery manufacturing with its unique vertical design, showing excellent cleaning and strengthening effects. Its efficient shot blasting machine ejects projectiles at high speed, accurately removing rust, scale, and dirt from the surface of various workpieces, while improving surface roughness and enhancing coating adhesion. The equipment has a high degree of automation and is easy to operate. It can flexibly adjust parameters according to different needs to achieve efficient production. In addition, it performs well in environmental protection and energy saving, and is equipped with advanced dust removal and projectile recovery systems to reduce pollution and costs. If you are looking for solutions to improve the surface quality of workpieces and optimize production processes, vertical shot blasting machines are undoubtedly the ideal choice. Please feel free to contact us for professional consultation and customized solutions.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
