Tire recycling equipment refers to the machinery and systems used to process and transform scrap tires into reusable materials. Instead of ending up in landfills, these tires are broken down into various components like rubber shreds, rubber granules, rubber powder, steel, and fiber, which can then be used in a wide range of applications. Which not only solves environmental problems but also creates new economic value. If you are also interested or need to purchase equipment, please contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Tire Recycling Equipment Parameter:
| Model | YG-3 | YG-6 | YG-10 | YG-16 | YGL-16 | YG-30 |
| Capacity | 1-3t/d | 4-6t/d | 8-10t/d | 12-16t/d | 8t/d (only for rubber powder) | 30-35t/d |
| Working Process | Batch | Batch | Batch | Batch | Semi-continuous | Fully continuous |
| Reactor Size | φ1400*4900mm | φ2200*6000mm | φ2600*6600mm | φ2800*7100mm | φ2800*7100mm | φ1800*18500mm |
| Land (L*W*H) | 18m*4.2m*6m | 30m*12m*8m | 30m*13m*8m | 33m*13m*8m | 33m*13m*8m | 70m*20m*10m |
| Power | 16.65kw | 37.85kw | 44.3kw | 55.6kw | 55.6kw | 256kw |
| Burner | 2*200,000 kcal | 2*300,000 kcal | 2*300,000 kcal | 2*400,000 kcal | 2*400,000 kcal | 2.5 million kcal per set |
| Total Weight of Shipped Materials | About 18t | About 24.5t | About 28t | About 34.5t | About 34.5t | About 150t |
| Noise (dB) | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 |
Waste Tire Recycling Line Working Principle:

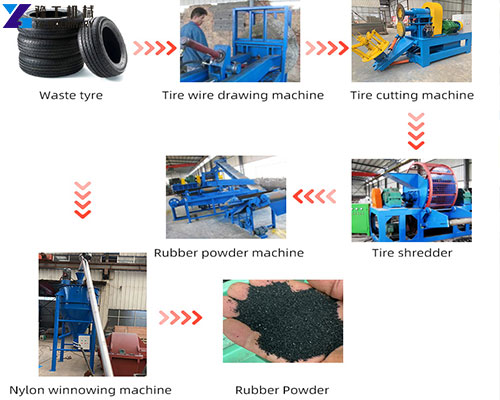

The working principle of the tire recycling line is based on mechanical crushing and physical separation technology. First, the waste tires enter the crushing system through the feeding device, and the blades of the tire shredding machine rotate at high speed to cut and crush the tires into small pieces. The crushed tire fragments enter the separation system, and metal materials such as steel wire are separated under the action of the vibrating screen and magnetic separation device. Then, the rubber and fiber are further separated through airflow sorting and other technologies. Finally, the separated materials are collected separately through the discharging device to complete the entire recycling process.
Tire Recycling Equipment Product Description and Main Components:

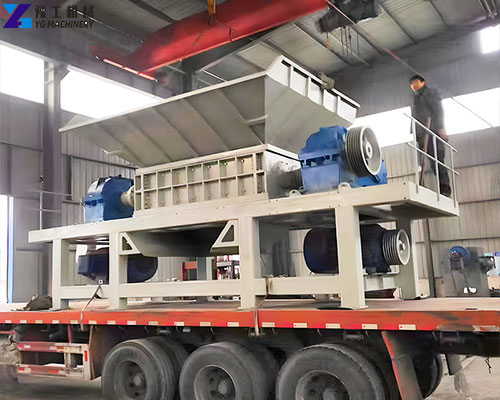

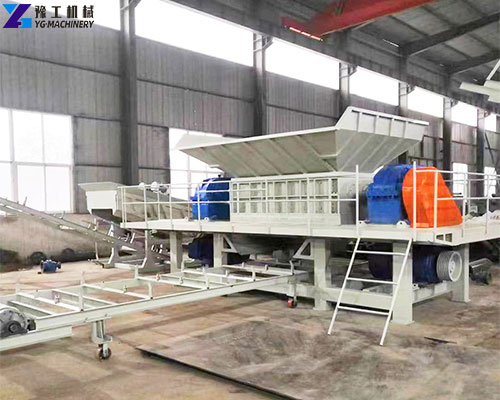

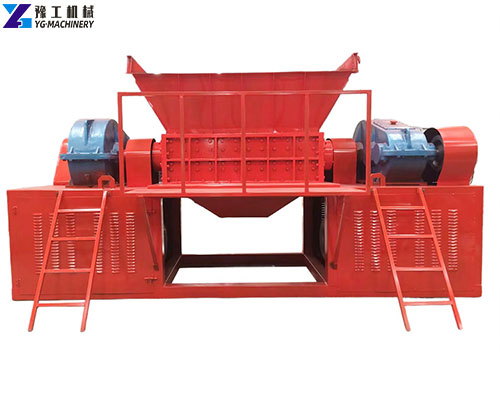

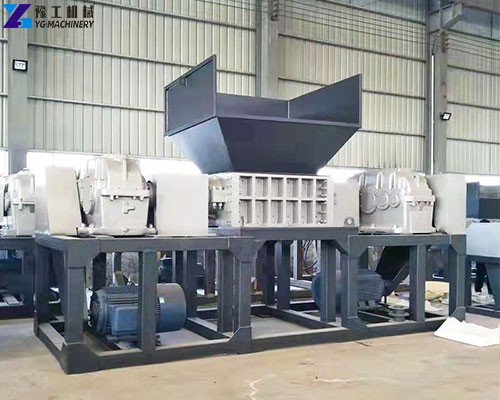

- Tire Shredder: Primary crushing equipment, used to tear the whole tire or tire bead removed into smaller rubber blocks or strips. The cutter is made of high-strength alloy steel, with strong wear resistance and high crushing efficiency.
- Rubber Granulator: Secondary crushing equipment, which further crushes the crushed rubber blocks into rubber particles of the required size. Usually equipped with rotating knives and fixed knives, fine crushing is achieved through shearing and extrusion.
- Magnetic Separator: Used to separate steel wire from rubber particles to improve the purity of rubber products. Strong magnetic materials are used, and the separation effect is significant.
- Fiber Separator: Used to separate nylon, polyester, and other fibers from rubber particles to improve the quality of rubber products further and usually separated by wind or mechanical means.
- Rubber Powder Mill: Optional configuration, used to grind rubber particles into finer rubber powder to meet higher requirements.
- Conveying system: Use belt conveyors or screw conveyors to realize automatic transportation of materials between various equipment and improve production efficiency.
- Dust removal system: Equipped with efficient dust removal equipment to collect dust generated during the production process and achieve environmentally friendly production.
- Control system: Use a PLC control system to realize automatic operation and monitoring of the entire production line.
Waste Tyre Recycling Machine for Sale – YG Machinery
With its powerful crushing capacity, efficient separation technology, intelligent control, energy saving, and environmental protection, tire recycling equipment has shown great value in many fields such as tire recycling, rubber product production, and building materials. It not only solves the environmental problems caused by waste tires but also creates considerable economic benefits for enterprises. If you are looking for high-quality tire recycling equipment, please contact us for a quote and get more product details.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
