As a sustainable and pollution-free energy source, the development and utilization of solar energy have received more and more attention. As key equipment for the construction of solar power stations, solar pile drivers play a decisive role in the smooth progress and long-term operation of the project. Colombia actively responds to the call for global sustainable development and vigorously promotes the development of the solar energy industry. The YG solar piling machine is not only easy to install but also perfectly compatible with the tracking bracket. During the construction process, the equipment has extremely high stability, which greatly reduces the number of pile foundations, not only reduces the construction cost but also improves the operational efficiency of the entire project. Contact us for more information about the equipment.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Solar Piling Machine Parameter:

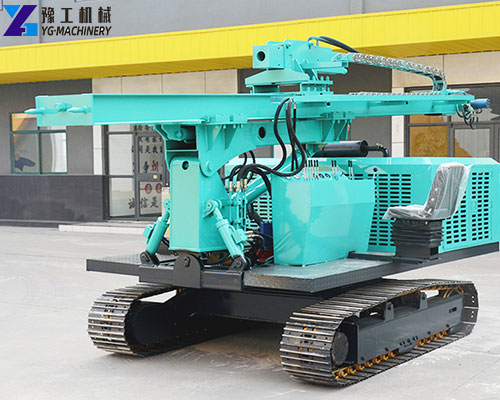

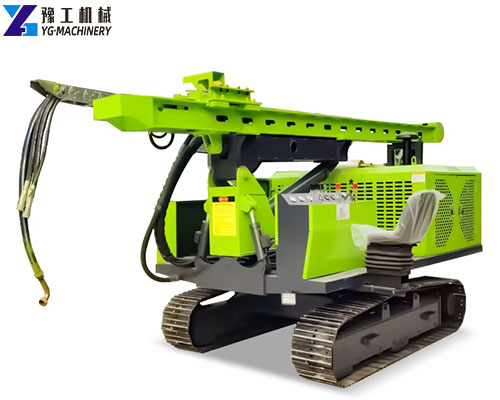

Hydraulic photovoltaic pile driver | |||
Overall dimensions | 4700*2100*2800mm | Drill pipe rotational speed | 180r/min |
Track shoe width | 400mm | gradability | 30° |
Motor | 4108 | rock hardness | 6-20F |
Drilling diameter | 80-500mm | Slide tilt angle | 120° |
Drilling depth | 0-6m | Drill arm swing angle | left and right150° |
Reducer torque | 13000n.m | Slide swing angle | left and right40° |
Mainstream pump | triple pump | Driving speed | 0-3km/h |
oil pump | 40/40/32 |

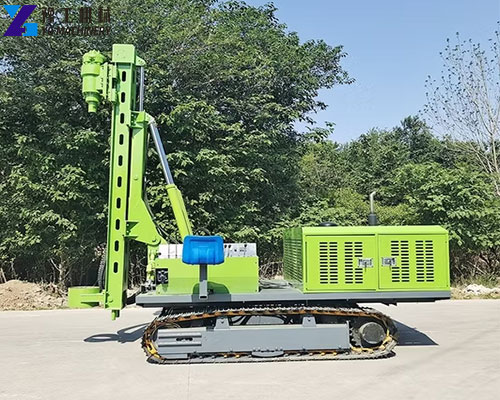

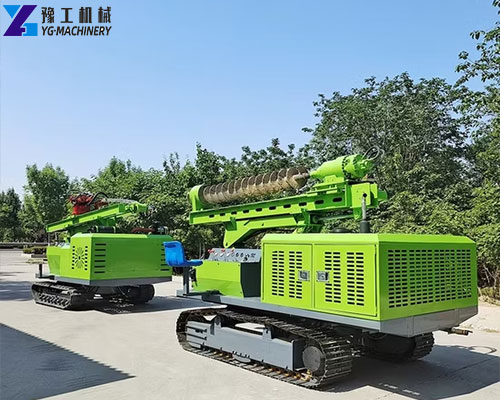

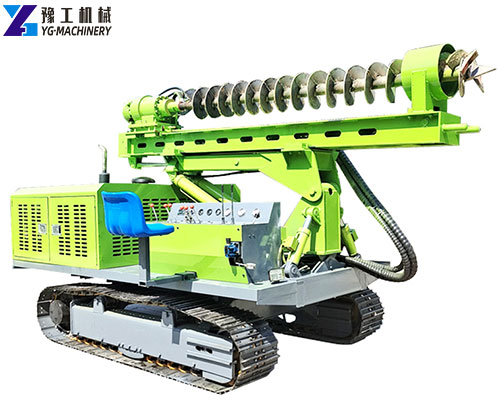

Crawler photovoltaic pile driver | |||
Overall dimensions | 4700*2200*2800mm | Hydraulic hammer flow | 50-110L/min |
Track shoe width | 400mm | Impact frequency | 350-800BMP |
Motor | 4108 | Hydraulic system pressure | 25mpa |
Generator power | 88kw Motor | Strong wind for heat dissipation | yes |
Drilling depth | 0-6m | oil pump | 40/40/32 |
Drilling diameter | 80-600mm | Driving speed | 3km/h |
Cases and Feedback from Colombian Customers Using YG Photovoltaic Pile Drivers in Different Projects:
Case 1: Large-scale ground photovoltaic power station project in northern Colombia
“We are building a large solar power station in Cesar Province in northern Colombia. The geological conditions are relatively complex, and there are many gravel and hard soil layers in some areas. At first, we were worried that the progress of the piling would be affected. However, we chose YG’s solar piling machine, which is very powerful and can easily penetrate these hard soil layers. The piling efficiency is much higher than we expected. Moreover, the crawler design of the machine allows it to work stably on uneven ground. More importantly, YG’s technical team provided us with timely technical support and solved some minor problems we encountered during construction. This greatly accelerated our project progress and reduced construction costs. We are very satisfied with YG’s products and services.” – Carlos Rodríguez, project manager of a Colombian energy company
Case 2: Rooftop photovoltaic project of a factory in the suburbs of Medellin, Colombia (ground bracket part)
“Our company has a factory in the suburbs of Medellin. To reduce operating costs, we decided to install a rooftop photovoltaic system. Since ground brackets are required in some areas, we investigated several piling equipment. Finally, we chose YG We chose the solar pile driver for its ease of use and precision. Our operators learned how to use it quickly, and the positioning system of the machine is very accurate, ensuring that all piles are in the intended position. This is very important for the subsequent bracket installation, avoiding unnecessary adjustments and rework. Although our project is not very large, YG’s product still showed its value and helped us complete the ground bracket installation efficiently and with high quality.” – Ana María Pérez, Engineering Supervisor, Colombian Manufacturing Company
Main Features of YG Solar Pile Driver:
- Powerful power and efficient piling: usually adopts a hydraulic system, which can quickly drive piles into the ground.
- Adapt to various terrains: crawler chassis design, stable operation on complex ground.
- Precise positioning and reliable quality: equipped with a positioning system to ensure the verticality and accurate position of the pile foundation.
- Easy operation and convenient maintenance: humanized design, easy to use and maintain.
- Diverse functions and flexible use: some models can adapt to different types of pile foundations, and even have functions such as drilling.
- Safety and environmental protection: equipped with safety measures, some models focus on energy saving and emission reduction.

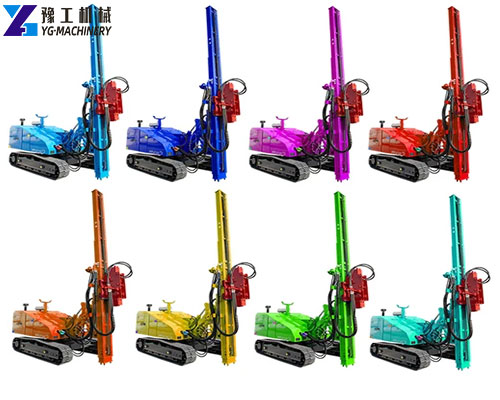

Solar Piling Machine for Sale – YG Machinery
Successful cases in different regions and projects have fully verified the performance and value of high-quality solar pile drivers. Our photovoltaic pile drivers have absorbed industry-leading technology and rich practical experience. They are not only efficient, stable, and accurate, but also provide customized solutions according to the needs of different projects. Whether it is a large photovoltaic power station or a small solar project, our equipment can complete the project efficiently. If you are preparing a solar project and have any needs for solar pile drivers, please feel free to contact us.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
