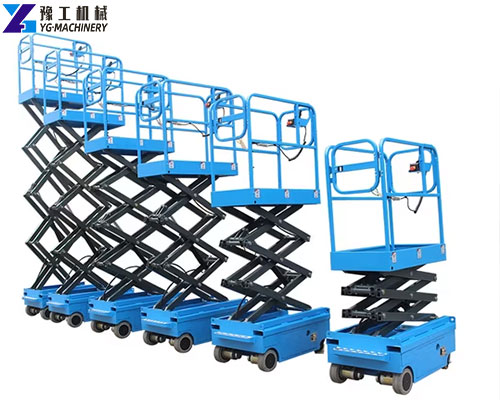

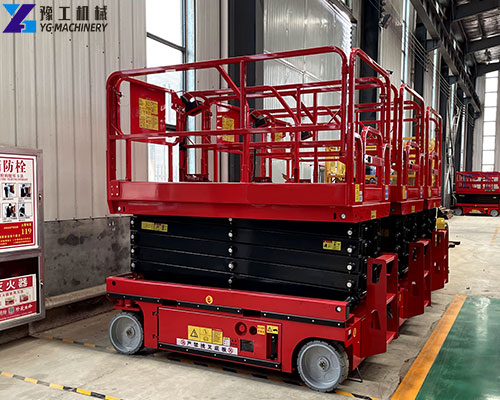

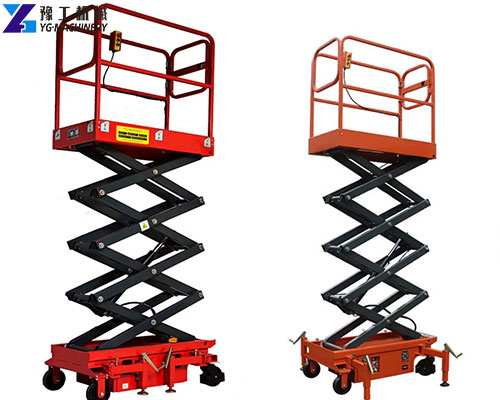

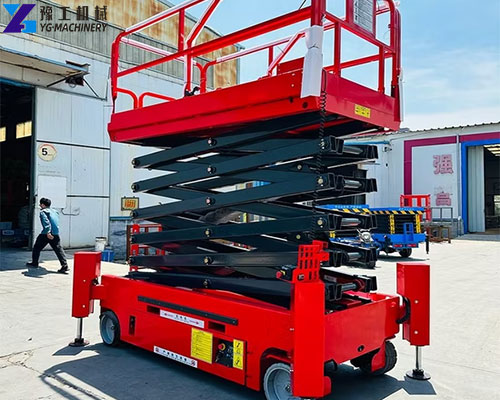

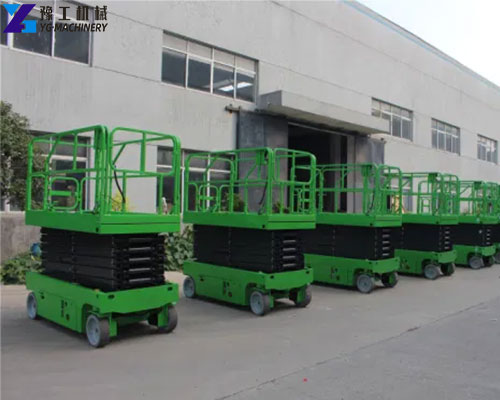

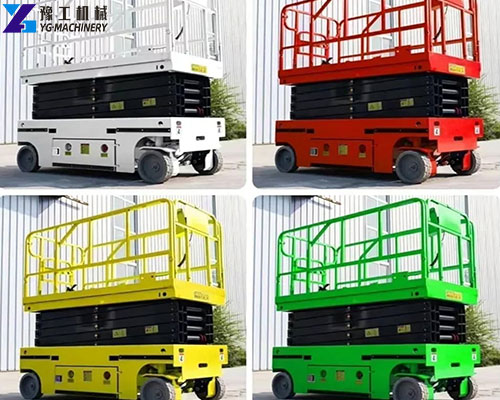

Small Scissor Lift for Sale

In modern industrial production, warehousing and logistics, property maintenance, and other fields, the demand for indoor aerial work is growing. Traditional scaffolding or ladders can no longer meet the requirements of efficient, safe, and convenient work. YG’s compact and flexible small scissor lift is designed for indoor environments. With its small size and flexible mobility, it is very suitable for working in small indoor spaces. If you are also choosing a more suitable machine for your project, get the small scissor lift for sale at YG Machinery’s price.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Small Electric Lifting Platform Technical Parameter:

Model Up(m) Load(kg) Platform size(m) Outline dimensions/guardrail folding(m) Lifting motor Weight(kg)
YG0608SP 5.8 230 1.67*0.74 1.86*0.76*1.84 24v/3.3kw 1580
YG0608 6 450 2.27*1.12 2.48*1.19*1.66 24v/3.3kw 2170
YG0810NP 8 230 2.27*0.81 2.48*0.83*1.99 24v/3.3kw 2260
YG0810 8 450 2.27*1.12 2.48*1.19*1.78 24v/3.3kw 2360
YG1012 10 320 2.27*1.12 2.48*1.19*1.91 24v/3.3kw 2640
YG1214 11.8 320 2.27*1.12 2.48*1.19*2.03 24v/4.5kw 2980
YG1416 13.7 230 2.64*1.12 2.85*1.25*2.105 24v/4.5kw 3600

Get a Free Quote

YG Small Scissor Lift Application Areas:

  1. Warehousing and logistics industry: In large warehouses and logistics centers, small scissor lifts for indoor use can be used for cargo stacking, picking, and sorting, improving warehouse management efficiency and reducing workers’ labor intensity.
    Case description: After a large e-commerce logistics center adopted the YG small scissor lift, the warehouse cargo stacking efficiency increased by 50%, the picking speed increased, and the order processing capacity was significantly enhanced.
  2. Property maintenance industry: In shopping malls, hotels, office buildings, factories, and other places, small scissor lifts for indoor use can be used for indoor cleaning, lamp replacement, pipeline maintenance, fire protection facility maintenance, etc., to improve maintenance efficiency and reduce maintenance costs.
    Case description: After a large property management company purchased a YG small scissor lift, the efficiency of high-altitude maintenance operations increased by 40%, the work intensity of maintenance personnel decreased, and the maintenance quality and safety were also improved.
  3. Retail industry: In supermarkets, shopping malls, exhibition halls, and other places, small scissor lifts for indoor use can be used for product display, billboard installation, booth construction, etc. It is flexible to operate, does not affect ground traffic, and improves work efficiency and display effects.
    Case description: After a large chain supermarket adopted the YG small scissor lift for sale, the speed of product shelving was accelerated, the efficiency of promotional activities was improved, the store image was completely renewed, and more customers were attracted.

Working Principle of YG Small Scissor Lift for Sale

  1. Electric drive hydraulic pump station: The equipment is powered by batteries or an external power supply to drive the hydraulic pump station to work and generate high-pressure hydraulic oil.
  2. Hydraulic oil drives the cylinder: High-pressure hydraulic oil enters the hydraulic cylinder through the hydraulic pipeline and pushes the cylinder piston rod to extend.
    Scissor arm unfolds and rises: The hydraulic cylinder piston rod pushes the scissor lift mechanism’s lower arm and drives the upper arm to unfold to form a scissor structure, and the working platform rises vertically.
  3. Hydraulic system controls lifting: By controlling the oil circuit and valves of the hydraulic system, the telescopic speed and stroke of the hydraulic cylinder can be accurately controlled, thereby achieving smooth lifting and height adjustment of the working platform.
  4. Safety protection device guarantee: The hydraulic system is equipped with safety protection devices, such as explosion-proof valves and emergency descending devices, to ensure that the platform can stop or descend safely in unexpected situations and to protect operators.

Get a Free Quote

Small Scissor Lift for Sale in YG Machinery Manufacturer

YG small electric scissor lift is designed to meet the needs of various scenarios that require compact space operation and efficient vertical lifting. Whether it is indoor maintenance work in a small business or equipment installation tasks in large commercial venues, this lift can play an excellent role and provide you with a safe, convenient, and efficient vertical working platform. As a factory direct sale, we provide you with very competitive prices. We also provide comprehensive after-sales services, including installation guidance, maintenance training, and fast parts replacement services, so that you can buy without worries. If you are interested in learning more or getting a quote, please contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
