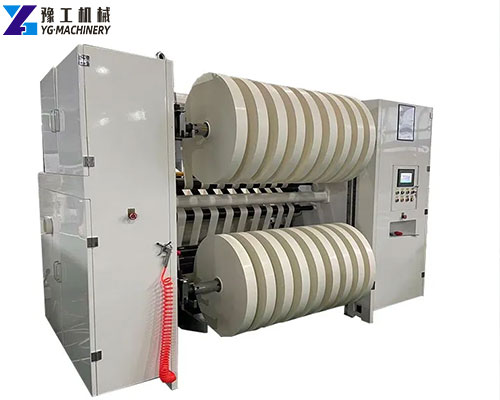

Slitting and Rewinding Machine

Slitting and rewinding machine is a device used to cut wide rolls into narrow rolls and rewind them into rolls. It is like a combination of a large “paper cutter” and a “paper reel”, which can cut and rewind wide rolls of material into multiple narrow finished rolls according to the required width. Slitting and rewinding machines can usually complete the slitting and rewinding processes at one time, achieving efficient material processing and roll conversion. Contact us now to purchase a slitting machine.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Slitting and Rewinding Machine Parameter:

Model YG- 1300 YG- 1600 YG- 1800
Max width 1300mm 1600mm 1800mm
Max Diameter for unwinding ￠1400mm ￠1400mm ￠1400mm
Min width of slitting 30mm 30mm 30mm
Max Diameter of rewinding ￠1000mm ￠1000mm ￠1000mm
Speed ≤350m/min ≤350m/min ≤350m/min
Total Power 24kw 26kw 30kw
Power supply 380V/50hz 380V/50hz 380V/50hz
Weight 4000kg 4500kg 5500kg
Overall dimension(LxWxH) 3300x3150x1930(mm) 3300x3450x1930(mm) 3300x3650x1930(mm)

Get a Free Quote

Slitter Rewinder Machine Can Process Materials:

  1. Paper: various types of paper, such as printing paper, copy paper, kraft paper, special paper, label paper, etc.
  2. Film: various plastic films, such as BOPP film, PET film, CPP film, PE film, PVC film, composite film, protective film, optical film, etc.
  3. Foil: such as aluminum foil, copper foil, etc.
  4. Textiles: such as cloth, non-woven fabrics, etc.
  5. Tape: various industrial tapes, BOPP tape, masking tape, etc.
  6. Other roll materials: such as leather, rubber sheet, etc.

Slitting and Rewinding Machine Application Areas:

  1. Packaging industry: used for slitting various packaging films, composite films, label materials, tapes, etc., used in food packaging, pharmaceutical packaging, daily necessities packaging, industrial packaging, and other fields.
  2. Printing industry: used for slitting printed paper, film, labels, etc., used in commercial printing, label printing, packaging printing, and other fields.
  3. Label industry: used for slitting self-adhesive label materials, film label materials, paper label materials, etc., used in various commodity labels, barcode labels, logistics labels, and other fields.
  4. Film industry: used for slitting various functional films, optical films, protective films, composite films, etc., used in electronic products, display screens, solar cells, the automotive industry, and other fields.
  5. Textile industry: used for slitting fabrics, non-woven fabrics, leather, etc., used in clothing, home textiles, industrial fabrics, medical and health materials, and other fields.
  6. Papermaking industry: used for slitting various papers, special papers, cardboards, etc., used in printing, packaging, cultural paper, and other fields.
  7. Tape industry: used for slitting various tape master rolls and producing finished tapes of various specifications.
  8. Metal foil industry: used for cutting aluminum foil, copper foil, etc., and applied in electronics, packaging, insulation material,s and other fields.

Get a Free Quote

Why Do We Need Slitting and Rewinding?

  1. Customized width: Often, the raw materials are produced as rolls of standard width, but downstream processing or applications may require a variety of narrow widths. Slitting and rewinding machines can cut wide rolls into narrow rolls of various customized widths according to the specific needs of customers to meet personalized needs.
  2. Improve material utilization: Through precise slitting, the generation of edge materials can be minimized, the utilization of raw materials can be improved, and production costs can be reduced. Optimizing typesetting can cut more required narrow materials from a piece of wide material.
  3. Eliminate defects: During the slitting and rewinding process, quality inspection and defect removal can be performed simultaneously. If there are defects, printing errors, or other quality problems, they can be detected and removed during slitting, and only the qualified parts are retained for rewinding to improve the quality of the final product.
  4. Convert roll form: Some materials may need to be converted from large rolls to small rolls, or from one winding method to another to adapt to different equipment or process flows. Slitting and rewinding machines can achieve this roll form conversion.
  5. Improve production efficiency: Compared with manual slitting, machine slitting is more efficient, more precise, and faster, which can significantly improve production efficiency, reduce labor costs, and meet the needs of large-scale production.
  6. Prepare for subsequent processing: The narrow coils after slitting are more suitable for various subsequent processing, such as printing, laminating, coating, laminating, die-cutting, packaging, etc. Slitting is an important link in many coil processing processes.

Slitting and Rewinding Machine Manufacturer – YG Machinery

If you are engaged in packaging, printing, electronics, textiles, building materials, and other industries related to material processing, and are faced with problems such as low material slitting and rewinding efficiency, unstable quality, and high costs, you may consider the slitting and rewinding machine. It will bring efficient, accurate, and reliable material processing solutions to your business, helping you achieve greater success in the industry. Whether it is large-scale industrial production or the material processing needs of small enterprises, the slitting and rewinding machine will become a powerful weapon for you to enhance your competitiveness. Contact us now to get more product information.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
