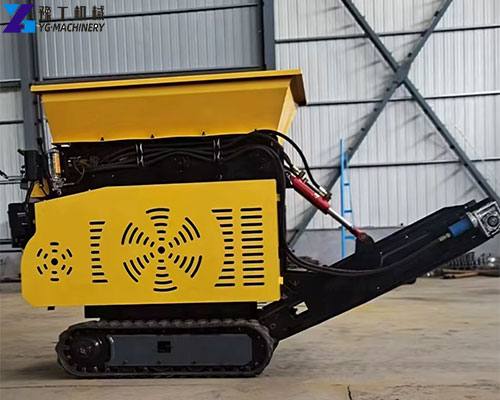

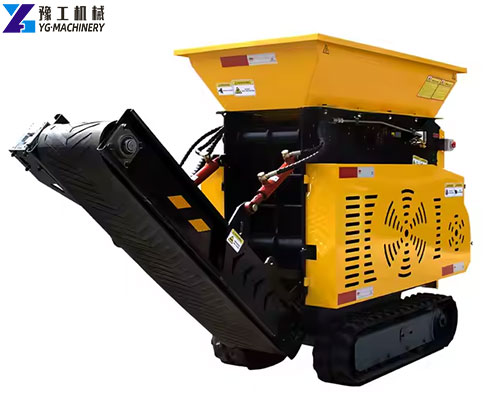

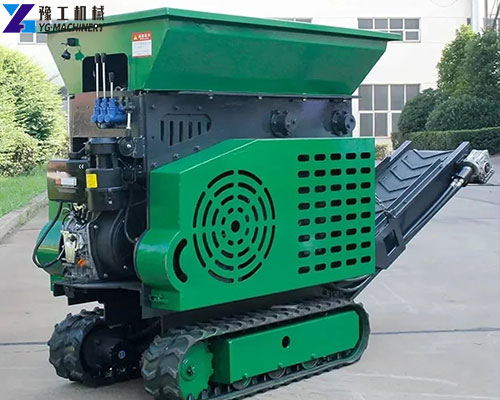

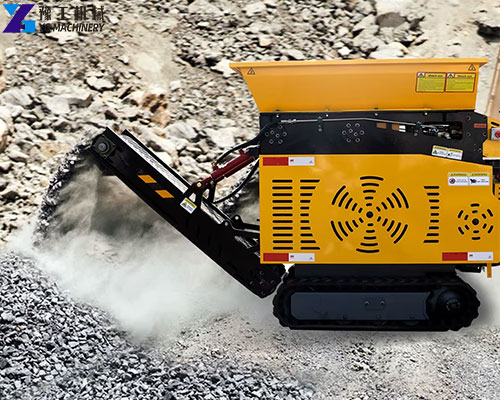

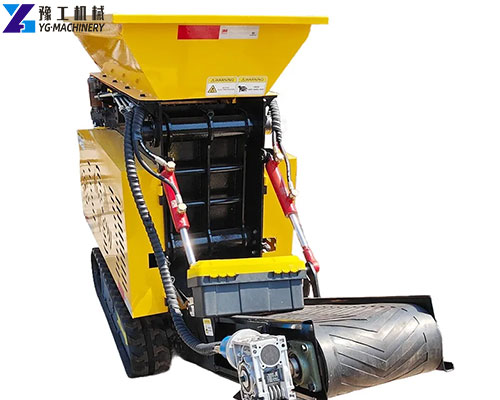

In the fast-paced worlds of construction, mining, and recycling, portable rock crushers have become an indispensable tool for projects that require on-site material processing. A portable stone crusher is a mobile crusher designed to break down large pieces of rock, grave,l or demolition waste into smaller, reusable aggregates. Unlike traditional stationary crushers, these units are mounted on wheels or tracks for easy transportation between job sites. They are widely used in the construction, mining, road building, and recycling industries. These mobile machines combine flexibility, power, and efficiency, enabling users to crush rock, concrete, and other materials directly on the job site. Contact us for information.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
Portable Stone Crusher Parameter:
Power System | |
Gasoline engine | 12.5kw/3600r/min |
Diesel engine | 10.5kw/3600r/min |
Walking part | |
Crawler chassis size(mm) | 1220*770 |
Track model(mm) | 180*72*37 |
Walking speed(km/h) | 0-3 |
Track specifications | Steel wire rubber tracks |
Feeding equipment | |
Silo volume(m3) | 0.5 |
Stacking height(mm) | 900-1200 |
Feeding conveyor(mm) | 1450*400 |
Jaw plate adjustment range(mm) | 25 |
Equipment appearance | |
Working size(mm) | 2950*770*1630 |
Vertical board inner width(mm) | 410 |
Transport size(mm) | 2100*770*1760 |
The total outer width of the guard(mm) | 740 |
Feed specifications | |
Feed port(mm) | 200*370 |
Maximum feed size(mm) | 200 |
Production capacity(T/D tons/day) | 3-10 |
Significant Advantages of Small Stone Crusher Machines:
- Excellent mobility: No infrastructure construction is required, which reduces the secondary handling of materials and reduces operating costs. It is especially suitable for working conditions where the site is scattered or the work site needs to be changed frequently.
- Fast and efficient operation capacity: The integrated design and optimized process shorten the equipment installation and commissioning time, which can be quickly put into production and improve production efficiency.
- Reduced material transportation costs: Crushing directly on the material site reduces the long-distance transportation of materials and significantly reduces transportation costs.
- Wide application fields: It can be widely used in construction waste treatment, mining, road construction, bridge construction, water conservancy projects, and other fields.
- Easy operation and maintenance: Modern portable crushers are usually equipped with advanced automatic control systems, which are simple to operate and easy to maintain.
- High return on investment: Efficient operation capacity and reduced operating costs make the long-term return on investment very considerable.
Application Areas of Portable Stone Crusher:
- Construction waste treatment: crush and screen the concrete, bricks tiles, and other wastes generated by building demolition on-site to achieve resource recycling and reduce environmental pollution.
- Mining: suitable for mining operations in small mines or on the edge of mining areas, especially in mining areas with complex terrain and inconvenient transportation, the advantages of portable crushers are more obvious.
- Road construction: In the construction of infrastructure such as roads and railways, it is used to produce sand and gravel aggregates required for roadbeds and road surfaces.
- Bridge construction: provide high-quality concrete aggregates for bridge projects.
- Water conservancy projects: used for stone crushing in projects such as dams and river management.
- Cement plants: as pre-crushing equipment for cement production lines to improve production efficiency.
- Quarries: used for stone mining and crushing processing.
- Emergency projects: quickly provide the required sand and gravel aggregates in reconstruction work after natural disasters such as earthquakes and floods.
- Agricultural fields (emerging applications): in some areas, portable crushers are also used for soil improvement, crushing limestone and other materials and spreading them into farmland to improve soil pH and soil fertility.
Buy Portable Stone Crusher from YG Machinery:
Portable stone crushers are game changers for industries that require flexible, efficient, and environmentally friendly material processing. From construction waste recycling to large-scale mining, these machines offer unparalleled flexibility and cost savings. As technology advances, features such as hybrid power and intelligent control will further enhance their value. Ready to invest? Compare models, evaluate your project needs, and consult with a professional sales manager to select the perfect portable crusher for your operation!【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
