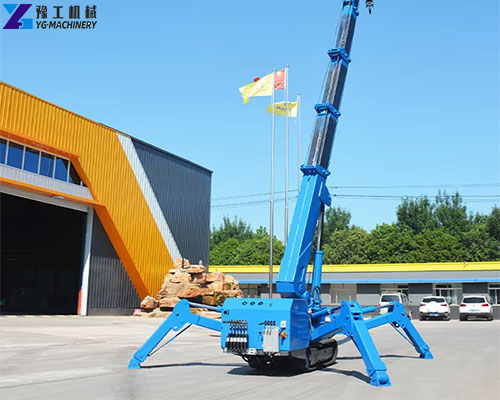

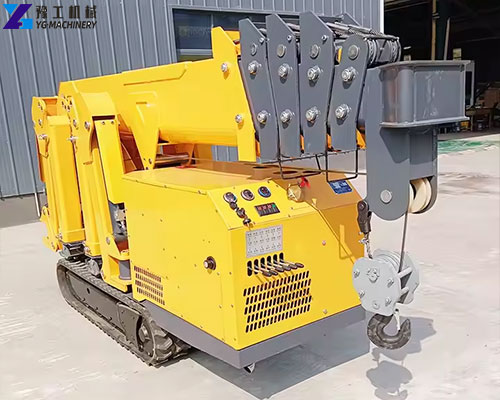

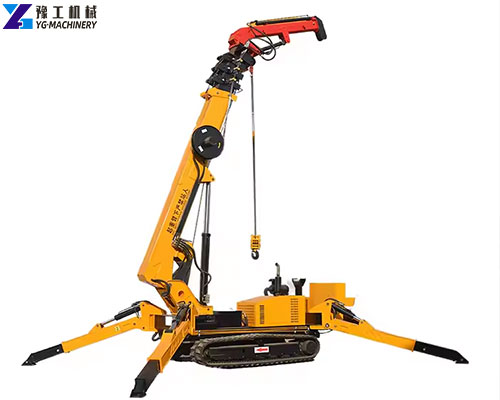

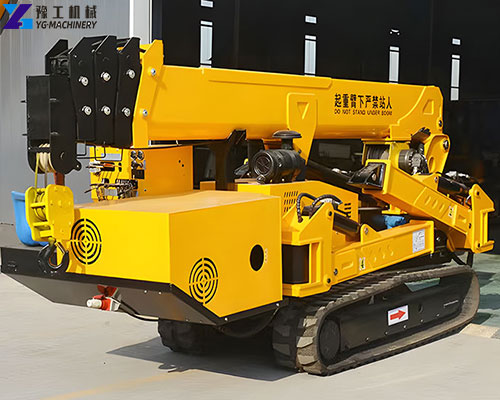

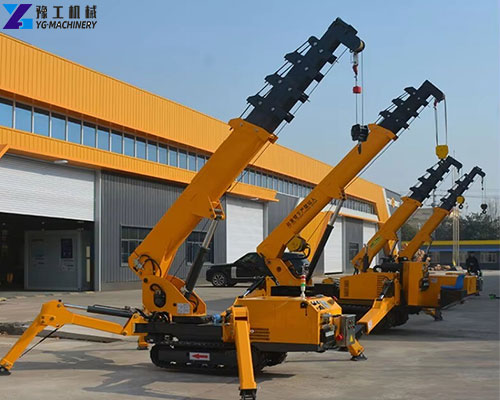

For those seeking a powerful yet compact lifting solution, YG offers a range of mini crawler crane for sale. These versatile machines are designed to tackle heavy lifting tasks in tight or challenging spaces where traditional cranes cannot operate, making them ideal for various construction, maintenance, and installation projects. At present, our mini spider crane has been sold to Malaysia, Australia, Singapore, and other countries, and has received good feedback from customers. If you are also looking forward to getting high-quality machines, please contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Mini Crawler Crane Parameter:
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
Small Crawler Crane Product Structure:
- Crawler chassis: provides excellent stability and ground adaptability, and can move safely even on rough or muddy ground.
- Retractable boom: composed of multi-section boom, it can be telescopic and variable according to the operation requirements to achieve flexible lifting operation.
- Lifting winch mechanism: provides smooth and reliable control of lifting and lowering of heavy objects.
- Slewing mechanism: enables the boom to rotate 360 degrees or a certain angle to expand the operating range.
- Hydraulic system: provides power for each action of the crane, including walking, boom extension, lifting, and rotation.
- Control system: includes operating handles, dashboards, and necessary safety protection devices to ensure the safety and convenience of operators.
- Counterweight: ensures the stability of the crane when lifting heavy objects.
Mini Crawler Crane Features:
- Excellent off-road performance: The crawler chassis design enables it to move and operate flexibly in rugged, muddy, or narrow sites.
- Powerful lifting capacity: Despite its compact size, it still has considerable lifting capacity to meet the needs of various working conditions. For specific lifting parameters, please refer to the technical specifications of different models.
- Compact design: The small body makes it easy to transport and operate in small spaces, which is very suitable for work indoors or in confined sites. This is also its outstanding feature as a convenient mini spider crane.
- Easy to operate: It is usually equipped with an intuitive operating interface and a user-friendly control system, which reduces the difficulty of operation and improves work efficiency.
- Versatility: A variety of accessories such as grabs, hanging baskets, etc. can be selected to meet different working needs.
- Safe and reliable: Equipped with multiple safety protection devices, such as overload protection, anti-rollover protection, etc., to ensure the safety of operators and equipment.
Mini Crawler Crane Customer Case:
Case 1: Glass Installation in Canada
- Application: A small construction company in Toronto, Canada, specializing in installing large glass panels in new buildings. They needed a crane that could fit through doorways and maneuver on different floor levels.
- Review: “The YG mini crawler crane was exactly what we needed! Its compact size allowed us to easily move it inside the building, and it had enough power to lift the heavy glass panels safely and efficiently. The tracks were great on the slightly uneven floors. Excellent machine!” – Mark Olsen, Project Manager.
Case 2: Garden Landscaping in the UK
- Application: A landscaping business in London, UK, working on residential gardens with limited access. They needed a crane to lift large trees and heavy stones over fences and into backyards.
- Review: “This little crane is a lifesaver! We used to struggle with manual lifting, which was slow and tiring. The YG mini crawler crane makes the job so much easier and faster. It’s surprisingly strong and very stable. A great investment for our business.” – Sarah Chen, Owner.
Case 3: Boat Maintenance in Australia
- Application: A small marina in Sydney, Australia, needs a crane to lift boat engines and other heavy parts for maintenance and repair. They required a crane that was compact enough to move around the docks and had good reach.
- Review: “We were impressed with the reach and stability of the YG mini crawler crane. It’s much more versatile than the fixed hoist we had before. Moving it around the marina is also quite simple. It has made our boat repair work much more efficient.” – David Miller, Marina Manager.
