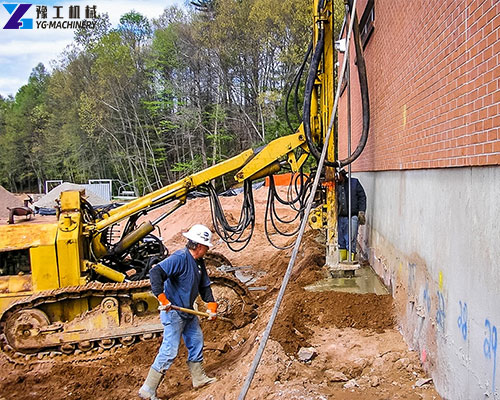

Jet grouting rig is a kind of ground improvement equipment specially used for high-pressure rotary jet grouting. It uses high pressure to spray cement slurry or other solidifying materials into the soil layer at high speed, fully mixes with the surrounding soil particles, and forms a reinforcement body with certain strength and impermeability. This equipment is mainly composed of a power system, drill rod, injection system, mud pumping system, and control system. It is widely used in soft foundation treatment, foundation pit support, tunnel engineering, water conservancy engineering, and other fields, which can effectively improve the bearing capacity and stability of the foundation. Contact us now for more information.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Jet Grouting Drilling Rig Parameter:
| Torque | 7500 N.m | Moving head speed | 0-170r/min |
| Stroke | 3400mm | Lifting force | 70kN |
| Feeding force | 36kN | Drilling depth | 130-170m |
| Drill Pipe Diameter | 50-250 mm | Drilling angle | 0~90° |
| Power | 55 Kw+18.5Kw | Weight | 5900 kg |
| Horizontal movement | 900mm | Hydraulic Working Pressure | 20 MPa |
| Gradeability | 25° | Walking speed | 1km/h |
| other functions | Added lift lift/built-in gripper | ||
| Overall dimensions (L * W * H) | Construction dimension 3550×2200×5650mm | ||
| Transport dimension 5600×2200×2100mm | |||
Case Analysis: YG High-pressure Jet Grouting Rig Helps Infrastructure Construction in the Philippines
In recent years, the Philippines’ economy has developed rapidly, and there is a strong demand for infrastructure construction. However, the geological conditions in some parts of the Philippines are complex, and there are a large number of soft soil foundations, which brings challenges to engineering construction. To solve this problem, a large construction engineering company in the Philippines finally chose the high-performance jet grouting rig produced by YG after inspecting many suppliers.
The Philippine company mainly undertakes local bridge and road construction projects and often needs to carry out construction on soft soil foundations. Traditional methods such as piling are not only costly but also inefficient. According to the company’s specific needs, YG recommended a high-pressure jet grouting rig with high jet pressure and stable performance. The equipment is easy to operate and can adapt to the complex local geological conditions in the Philippines.
After using YG’s jet grouting drilling rig, the Philippine company’s foundation treatment efficiency has been significantly improved, and the progress of the project has been greatly accelerated. The foundation reinforced by high-pressure jet grouting technology has effectively improved its bearing capacity and stability, ensuring the construction quality of bridges and roads. Customers reported that YG’s equipment is reliable and easy to operate, and YG’s after-sales service team also provided timely technical support to solve the problems they encountered during the construction process. This successful cooperation case fully demonstrates the competitiveness and value of YG’s high-pressure jet drilling rigs in the international market.

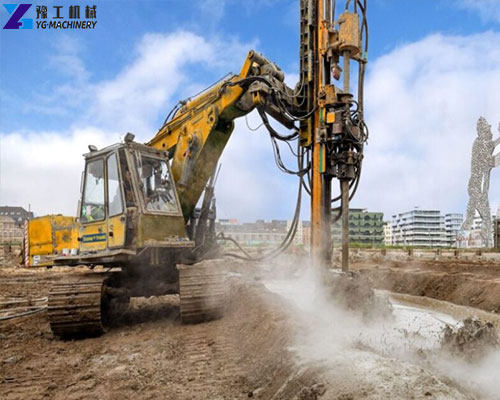

Jet Grouting Drilling Rig for Sale – YG Machinery
In short, the YG high-pressure jet grouting rig is your ideal choice for improving project quality and efficiency with its efficient foundation reinforcement capability, wide application fields, and reliable performance. Whether you are facing the challenge of soft soil foundation treatment, foundation pit support, or tunnel engineering, our jet grouting rig can provide you with strong support. Contact us now to get professional solutions and the most competitive quotation.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
