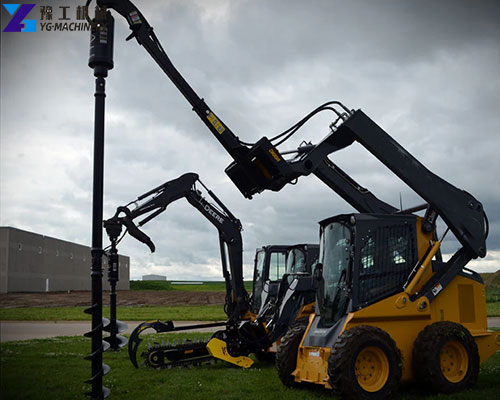

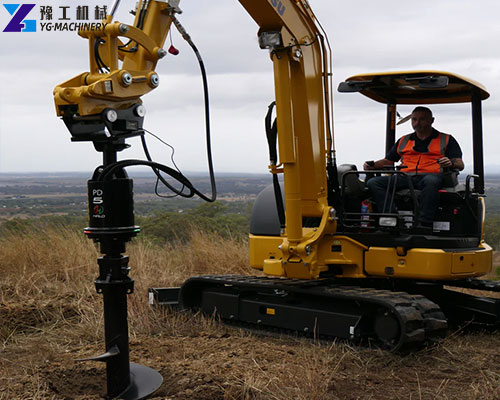

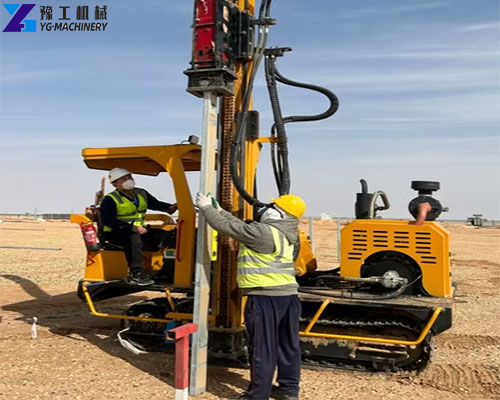

Ground screw pile driver is a type of screw pile driver, which is mainly used for pile driving of screw piles on the ground. It is usually composed of key parts such as a power source, drive mechanism, drill rod, and spiral blades. The power source can be a diesel engine or an electric motor to provide a power guarantee for pile driving. The drive mechanism is responsible for transmitting power to the drill rod, driving the drill rod to rotate at high speed. The end of the drill rod is equipped with a well-designed spiral blade, which is generally made of high-strength and wear-resistant alloy steel. During the rotation process, the spiral pile is steadily drilled into the soil like a large screw screwed into the ground. It can often be seen on some construction sites, quickly and accurately building a solid foundation for the building. Contact us for more product information.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Ground Screw Pile Driver Parameter:
| Model | YG-32S pile driver |
| Rig weight | 1.2T |
| Dimensions (L×W×H) | 2300*1300*2200mm |
| Engine power | 32HP |
| Rotary head torque | 3500N.m |
| Hydraulic oil pump | Single pump |
| hydraulic loading system | Cylinder chain pressure |
| Hydraulic working pressure | 20Mpa |
| Way of walking | Crawler gearbox walking |
| Walking speed | 7-15km/h |
| Cooling system | Hydraulic cooler |
| Carriage travel distance | 2.8m |
| Piling height | 1-3m |
| Borehole diameter | 50-300mm |
| Borehole depth | 1-30m |
| Air consumption | 6m³/min |
| Adapt to rock types | Medium hard rock, F=8-12 |
| Hydraulic legs | 4 |
| Climbing ability | 35° |
Ground Screw Pile Driver Project Case Analysis: Biohof Sonnenblume, Germany
- Customer background: Biohof Sonnenblume is a large organic farm in southern Germany that plans to expand its vegetable greenhouses and needs an environmentally friendly and fast foundation solution.
- Problems solved by the product: Traditional concrete foundations have a long construction period and have a certain impact on the soil, which does not conform to the farm’s ecological concept. They need an easy-to-install, environmentally friendly foundation solution to support the new greenhouse.
- Effect: Biohof Sonnenblume purchased the YG ground screw pile driver and matching screw piles. In just a few days, they completed the foundation installation of all greenhouses, which was much faster than expected. The noise and soil disturbance generated during the installation process were also very small, which fully met their environmental protection requirements.
- Customer review: “We are very satisfied with the YG spiral pile driver. It is very easy to operate and our farm workers learned to use it quickly. Most importantly, it provides us with a stable and environmentally friendly greenhouse foundation, which is completely in line with our philosophy. The installation speed is also very fast, which saves us a lot of time. We highly recommend this product!” – Klaus Schmidt, farmer of Biohof Sonnenblume.
The Role of Spiral Piles in Addressing Climate Change:
Extreme weather events brought about by climate change, such as floods and storms, pose higher challenges to traditional foundations. Spiral piles, due to their unique structure and installation method, show unique advantages in addressing these challenges:
- Strong pull-out resistance: The spiral blades can be firmly anchored in the soil, providing excellent pull-out resistance, and can better resist natural disasters such as strong winds.
- Adapt to complex terrain: Spiral piles can be installed on uneven or inclined ground, suitable for various complex terrains, and provide convenience for constructing infrastructure in disaster-prone areas.
- Quick repair and reconstruction: During post-disaster reconstruction, spiral piles can be installed quickly, providing a solid foundation for temporary or permanent buildings and speeding up reconstruction.
- Reduce damage to the environment: Compared with traditional concrete foundations, spiral piles generate less waste during installation, have less impact on the environment, and are more in line with sustainable development.
As the impact of climate change intensifies, screw piles, as a more resilient and adaptive foundation solution, will play an increasingly important role in future infrastructure construction and disaster response.
