Excavator Vibratory Plate Compactor

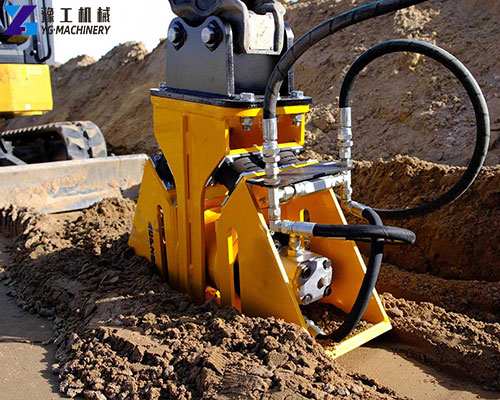

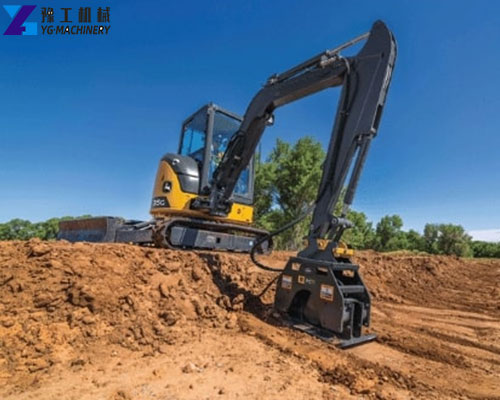

An excavator vibratory plate compactor is an attachment (accessory) installed on an excavator. Just like a bucket and a breaker, it can be installed on the front of an excavator to give the excavator new functions. Its main part is a flat plate compactor that can generate high-frequency vibrations to compact the ground or soil. The main function of an excavator vibratory plate compactor is to use high-frequency vibrations to efficiently compact soil, roadbed, trench backfill, and other ground. Its core function is ground compaction, the purpose of which is to make the ground more solid and stable. Do you need excavator attachments? Contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Excavator Vibratory Plate Compactor Parameter:

Model YG-32 YG-50 YG-80 YG-107
Vibration force(KN) 40 65 110 150
Excitation frequency(RPM) ≥2000 ≥2000 ≥2200 ≥2200
Working pressure(MPA) 15 15 15 15
Maximum flow(L/min) 60 100 160 160
Suitable excavators(T) 4-9 10-18 20-27 30-40
Length/width/height(mm) 900*550*750 1160*700*930 1350*900*1000 1350*900*1050
Machine weight(KG) 380 550 920 1050
Hit area(mm) 900*550 1160*700 1350*900 1350*900

Get a Free Quote

Excavator Vibratory Plate Compactor Working Principle and Structural Design​:

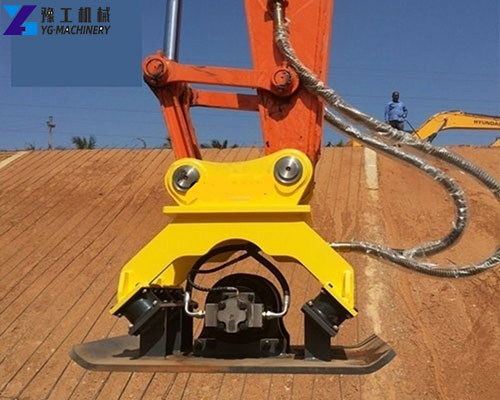

The excavator vibrating plate compactor is mainly composed of a vibration mechanism, a plate, a connecting device, and an installation system adapted to the excavator. The core vibration mechanism is the source of compaction power, and an eccentric block vibrator is usually used. The hydraulic system of the excavator provides power to drive the eccentric block to rotate at high speed, generating a high-frequency periodic exciting force. This exciting force is transmitted to the plate, causing the plate to vibrate strongly up and down. ​
As a component that directly acts on the ground, the plate is made of high-strength steel and has good wear resistance and deformation resistance. Its surface has been specially treated to effectively increase the friction with the ground, ensuring that during the vibration compaction process, it produces an efficient compaction effect on materials such as soil, sand, and gravel. The size and weight of the plate are designed according to different application scenarios and operation requirements to adapt to projects of various sizes. ​
The connecting device is a key component to achieve a close combination of the vibration mechanism and the plate. It must not only ensure the efficient transmission of vibration energy but also have sufficient strength and stability to withstand various impact forces and vibration loads during the operation. At the same time, the connection device is also designed with a buffer structure to reduce the impact of vibration on the excavator itself and protect the hydraulic system and other components of the excavator. ​
The installation system adapted to the excavator has been carefully designed to quickly and easily install the vibrating plate compactor on the working arm of the excavator. The installation system has good versatility and can be adapted to a variety of excavator models, providing great convenience for the construction team. Once installed, the excavator operator can flexibly control the operation of the vibrating plate compactor by operating the excavator’s control handle to achieve precise compaction operations.

Get a Free Quote

Excavator Vibratory Plate Compactor for Sale – YG Machinery

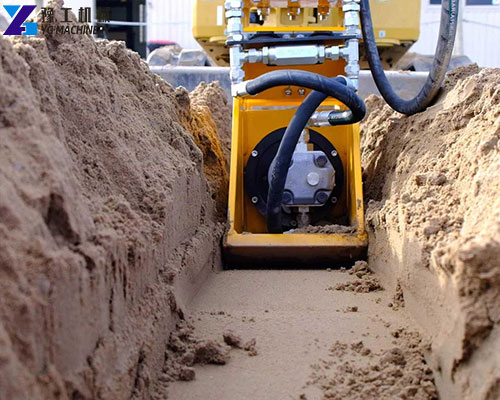

Excavator vibrating plate compactor can quickly compact all kinds of ground, whether it is building a house, repairing a road, or digging a ditch, it can make the ground flat and solid. No need to buy a special roller, an excavator can handle both excavation and compaction, saving money and effort! If you want the ground project to be fast and good, choose an excavator vibrating plate compactor!
In construction, road, municipal, and water conservancy projects, it not only has strong compaction ability, but also can flexibly adapt to various complex construction environments, accurately control compaction parameters, and its operating efficiency far exceeds that of traditional equipment.
If you are in the engineering construction industry and are troubled by the problem of foundation compaction, you might as well try the excavator vibrating plate compactor, which can help you solve the problem efficiently and improve the quality of the project. Contact us now for more information.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
