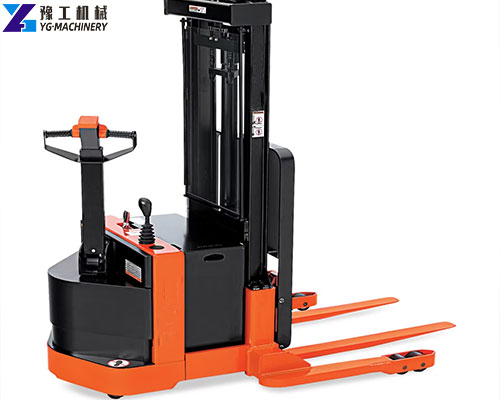

Electric Stacker Lift

Electric stacker lift is an electrically driven material handling equipment, mainly used for vertical lifting and short-distance horizontal transportation of goods in warehouses, workshops, and other places. It drives the forklift by electricity, and some models also have an electric travel function, which can significantly improve the efficiency of material handling and stacking, reduce manual labor intensity, and optimize space utilization. It is an indispensable light lifting equipment in modern logistics and warehousing. Contact us now to buy.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Get a Free Quote

Electric Stacker Lift Parameter:

Product model YG-40E
Drive mode Electric
Driving mode Stand-up
Rated load 1500kg
Load center 600mm
Wheelbase 1480mm
Weight 720Kg
Wheels Tire Polyurethane wheel
Drive wheel size 250*80mm
Front-wheel size 80*70mm
Balance wheel size 100*40mm
Front-wheel width 530mm
Rear wheel width 650mm
Total height (when the fork is lowered to the lowest) 1950mm
Total height (when the fork is raised to the highest) 4500mm
Lifting height 4000mm
Fork height from the ground 90mm
Total length (including pedal) 2100 (2600)mm
Fork length 1100mm
Total width 850mm
Fork width 180*50*1100mm
Adjustable outer width of the fork 680mm
Minimum ground clearance 30mm
Turning radius 1530mm
Mast 3 masts
Performance Travel speed (full load/no load) 4.5/5.0Km/h
Lifting speed (full load/no load) 100/120mm/s
Lowering speed (full load/no load) 100/100mm/s
Braking method Electromagnetic brake
Charger 24/15 V/A
Motor Drive motor power 0.75Kw
Lifting motor power 2.2Kw
Battery voltage/capacity 24/120V/Ah

Get a Free Quote

Common Application Areas of Electric Stackers:

  1. Warehouses and distribution centers: used for vertical stacking of goods, picking up goods from shelves, and moving goods to different storage areas or loading and unloading platforms to improve the storage density and operational efficiency of warehouses.
  2. Production workshops and factories: used for short-distance transportation of materials on the production line, material transfer between workstations, and stacking parts to a specified height to facilitate the production process.
  3. Retail industry: used for putting goods on and off shelves in supermarkets, shopping malls, convenience stores, and other places, as well as internal transportation between warehouses and sales areas, to facilitate the display and inventory management of goods.
  4. Logistics and transportation industry: used for loading and unloading and short-distance transfer of goods in freight stations, docks, and other places, to improve logistics efficiency and reduce the burden of manual handling.
  5. Pharmaceutical and food industry: Because electric operation is pollution-free, it is suitable for pharmaceutical and food warehouses with high environmental requirements to carry out cargo handling and stacking.
  6. Cold storage and special environments: Some models of electric stackers are specially designed to operate safely and reliably in special environments such as low temperature or humidity.

Advantages of YG Electric Stacker Lift:

  1. Improve handling efficiency: The electric lifting and walking functions greatly improve the material handling and stacking speed, and shorten the operation time.
  2. Reduce labor intensity: Reduce the physical labor of operators and improve work comfort and efficiency.
  3. Save operating costs: Electric drive reduces energy consumption and maintenance costs and has a high cost performance.
  4. Optimize space utilization: The compact design enables the equipment to operate flexibly in a small warehouse space and improves the storage density of the warehouse.
  5. Improve safety: Multiple safety protection devices ensure the safety of operators and goods and reduce the risk of accidents.

Get a Free Quote

Electric Stacker Lift Price – YG Machinery

The price of the YG electric forklift varies according to the specific model, configuration, and customer needs. The main factors affecting the price include rated load, maximum lifting height, whether it is equipped with electric travel function, battery type, and brand etc. With its high efficiency, convenience, safety, and economy, it has become an indispensable and important equipment in modern warehousing and logistics management. Whether you need to increase the storage density of the warehouse or improve the material handling efficiency of the production line, our products can provide you with an ideal solution. Visit our product page now for more details, or contact us for free consultation and customized solutions!【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
