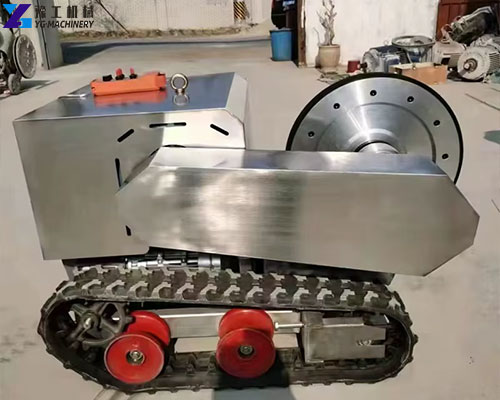

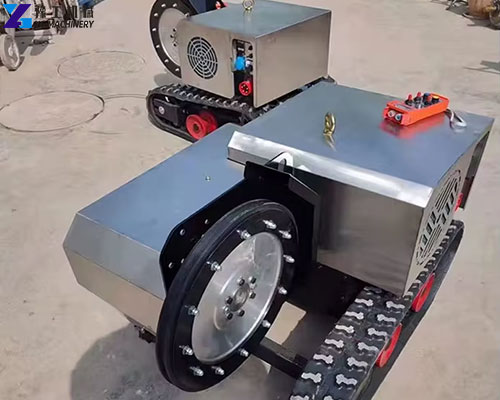

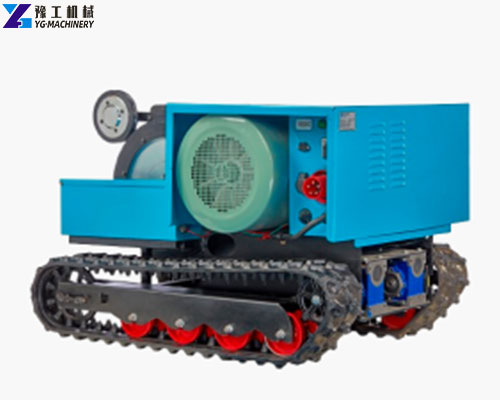

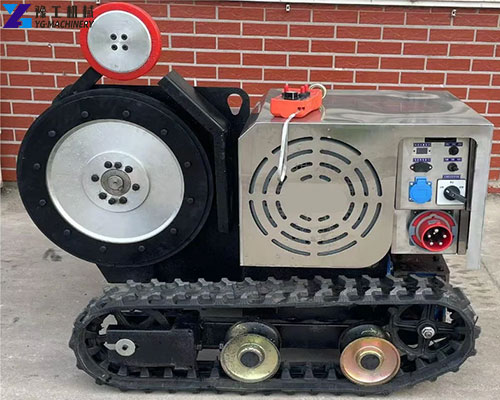

Crawler Wire Saw

Concrete crawler wire saw is a kind of equipment specially used for cutting concrete structures. It uses high-speed diamond wire rope as a cutting tool to cut concrete through friction and grinding. This cutting method has the advantages of high precision, high efficiency, low noise, and less dust, and can achieve accurate and efficient concrete cutting operations in various complex engineering environments. Contact us for product prices and the latest information.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800

Get a Free Quote

Concrete Crawler Electric Wire Saw Machine Parameter:

Model YG-37HT-6P YG-45HT-6P YG-55HT-6P
Main Motor Power 37KW-6P(50HP) 45KW-6P(60HP) 55KW-6P(75HP)
Flywheel Diameter φ800mm φ800mm φ800mm
Wire Saw Speed 0-40m/s 0-40m/s 0-40m/s
Max. Wire Saw Length 20-60m 20-80m 20-100m
Walking Motor Power 0.75KW(1HP) 0.75KW(1HP) 0.75KW(1HP)
Rotation Angle(Electric) 360° 360° 360°
Walking Speed of Machine 0-60m/h 0-60m/h 0-90m/h
Rail Length 7.3m 7.3m 7.3m
Allowed Working Temperature -15~+40℃ -15~+40℃ -15~+40℃
Crawler Power 42KW(56HP) 42KW(56HP) 42KW(56HP)
Dimension: L*W*H 7300*2380*2150mm 7300*2380*2150mm 7300*2380*2150mm
Net Weight 7T 7.3T 7.5T

Get a Free Quote

Working Principle of Crawler Wire Saw:

Mainly through the high-speed movement of diamond wire rope on the surface of the object to be cut to achieve cutting. The process is as follows:

  1. Fix: First, fix the frame of the crawler wire saw on the object to be cut by anchoring or other means.
  2. Wrapping: Wrap the diamond wire rope around the guide wheel according to the predetermined cutting line.
  3. Drive: Start the drive system, the motor drives the guide wheel to rotate at high speed, so that the wire rope moves at a certain speed.
  4. Feed: By controlling the crawler walking mechanism, the wire rope gradually penetrates the inside of the object to be cut to achieve cutting.
  5. Cooling: During the cutting process, coolant (such as water) is usually used to cool the wire rope and the cutting surface to reduce the temperature, and improve the cutting efficiency and the service life of the wire rope.

Get a Free Quote

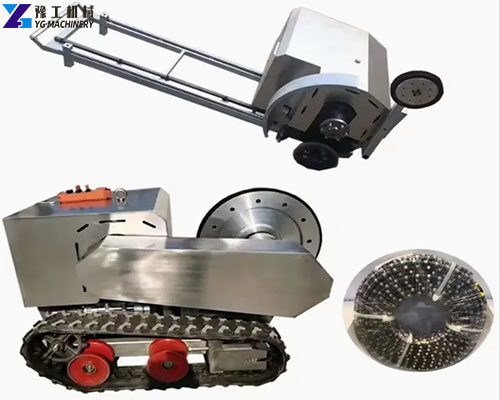

Crawler Wire Saw Product Description and Key Components:

  1. Crawler walking mechanism: provides a stable and reliable mobile platform, adapts to various complex terrains, and ensures the smoothness of the cutting process.
  2. Sturdy frame structure: welded with high-strength steel, it ensures the overall rigidity and stability of the equipment and can withstand the huge tension generated during the cutting process.
  3. Drive system: usually hydraulic or electric drive is used to provide strong power for the operation of the wire rope and can achieve precise speed control.
  4. Guide wheel system: The precisely designed guide wheel ensures that the wire rope maintains the correct direction and tension during the cutting process, improving the cutting accuracy and efficiency.
  5. Wire rope: high-strength diamond wire rope is used, which has extremely high wear resistance and cutting ability, and can easily cut various hard materials, including concrete in concrete wire saw applications.
  6. Control system: The advanced control system can realize automated cutting, improve cutting accuracy and safety, and monitor the equipment operation status in real-time.

Crawler Wire Saw Manufacturer – YG Machinery

In summary, the YG crawler electric wire saw plays a vital role in modern engineering construction and mining with its excellent performance and wide application fields. Its powerful cutting ability, high precision, adaptability, safety, and reliability make it an ideal choice for cutting hard materials such as concrete and rock. Choosing the YG crawler wire saw means that you have chosen an efficient, intelligent, and reliable cutting solution that can significantly improve engineering efficiency, reduce operating costs, and ensure operational safety. Contact us now to get the latest price.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
