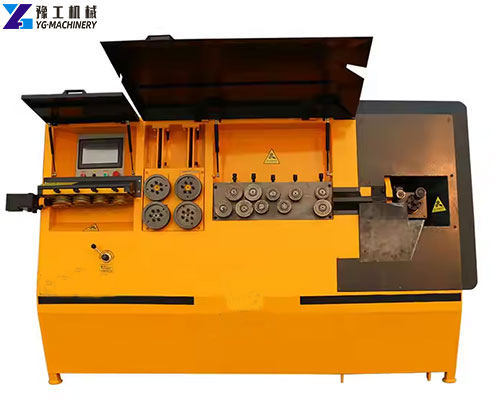

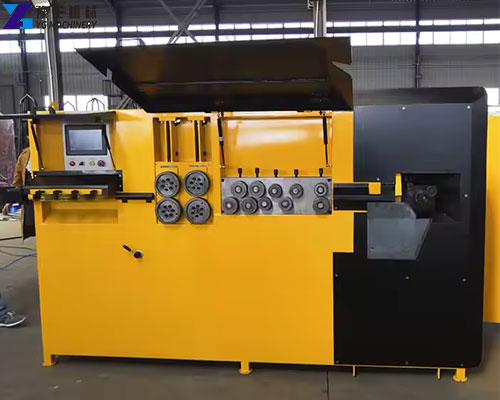

CNC hoop bending machine is a kind of equipment that uses computer numerical control technology to automatically bend steel bars into various required hoop shapes. It can accurately complete the feeding, straightening, bending, and cutting of steel bars according to the pre-set program. Compared with the traditional manual or semi-automatic bending method, it has higher processing accuracy, faster production efficiency, and stronger flexibility. It is widely used in engineering fields such as construction, bridges, tunnels, etc. It is a key equipment for realizing factory-based and intelligent steel bar processing. Contact us for more information on the product.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
CNC Hoop Bending Machine Parameter:
| Model | YG-1 | YG-2 | YG-3 | YG-4 |
| Single wire(mm) | Round steel 4-10mm
Deformed steel bar 4-8mm |
Round steel 4-12mm
Deformed steel bar 4-10mm |
Round steel 5-14mm
Deformed steel bar 5-12mm |
Round steel 4-12mm
Deformed steel bar 4-10mm |
| Double wire(mm) | Round steel 4-6mm
Deformed steel bar 4-6mm |
Round steel 4-8mm
Deformed steel bar4-8mm |
Round steel 5-10mm
Deformed steel bar 5-10mm |
Round steel 4-8mm
Deformed steel bar 4-8mm |
| Max bending angle | ±180° | ±180° | ±180° | ±180° |
| Center pin diameter | 16、18、20 | 16、18、20 | / | 16、18、20 |
| Maximum towing speed | 60m/min | 60m/min | 110m/min | 110m/min |
| Maximum bending speed | 800°/sec | 800°/sec | 1000°/sec | 800°/sec |
| Machine size | 2600*800*1700mm | 3280*1000*1700mm | 3850*1200*2200mm | 3660*1110*1700mm |
| Device color | Yellow(customized) | Yellow(customized) | Yellow(customized) | Yellow(customized) |
| Pieces Processed | ≤2 | ≤2 | ≤2 | ≤2 |
| Air circuit system pressure | ≥0.8mpa | ≥0.8mpa | / | ≥0.8mpa |
| Total Power | 14kw | 20kw | 32kw | 23.5kw |
| Working temperature | -5°C~40° | -5°C~40° | -5°C~40° | -5°C~40° |
| Length accuracy | ±1mm | ±1mm | ±1mm | ±1mm |
| Angle accuracy | ±1° | ±1° | ±1° | ±1° |
| Average power | 4.5KW/h | 5KW/h | 5KW/h | 5KW/h |
| Total weight | 1150KG | 1350KG | 2200KG | 1550KG |

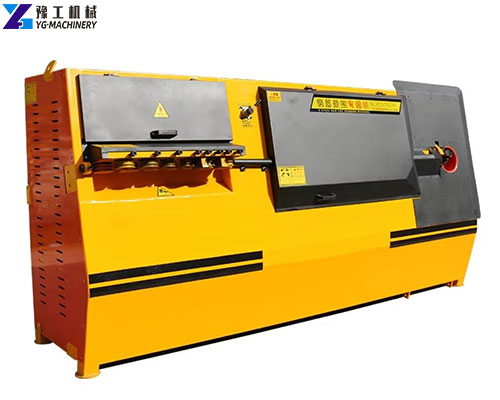

YG CNC Stirrup Bending Machine Helps Upgrade the Construction Industry in Malaysia
A large construction engineering company located in Kuala Lumpur, to improve the automation level and production efficiency of its steel bar processing, finally chose the CNC hoop bending machine produced by YG after inspecting many suppliers.
The Malaysian company mainly undertakes high-rise residential and commercial construction projects and has high requirements for the precision and efficiency of steel bar processing. Traditional semi-automatic bending equipment can no longer meet its growing production needs. According to the specific situation of the company, YG recommended a CNC stirrup bending machine with multiple advanced technologies. The equipment not only has a fast processing speed, but also can accurately bend various complex stirrup shapes, and the operation interface is also very friendly, which is convenient for workers to get started.
Since the introduction of YG’s steel hoop bending machine, the Malaysian company’s steel bar processing efficiency has increased several times, greatly shortening the construction period of the project. More importantly, the processed stirrups are accurate in size and stable in quality, which effectively improves the safety of the building structure. Customer feedback shows that YG’s equipment performance is stable and reliable, and the after-sales service is also in place, providing a strong guarantee for their production. This successful cooperation case fully demonstrated the competitiveness and value of the YG CNC stirrup bending machine in the international market and also brought more efficient and precise steel bar processing solutions to Malaysia’s construction industry.
Main Application Areas of CNC Stirrup Bending Machine:
- Housing construction engineering: used to process various stirrups in concrete structures, such as circular, rectangular, polygonal, and other shaped steel bars of beams, columns, plates, and other components to enhance the seismic resistance and bearing capacity of the structure.
- Bridge construction: used for steel bar processing in piers, bridge decks, and other parts, making stirrups of various specifications to ensure the stability of bridge structures.
- Tunnel engineering: used for steel bar processing of tunnel lining structures to provide support and reinforcement for tunnels.
- Prefabricated component production: In prefabricated concrete component factories, CNC stirrup bending machines can efficiently and accurately produce stirrups required for various prefabricated components, improving production efficiency and product quality.
- Railway construction: used for steel bar processing of railway bridges, tunnels, and other structures to meet the strict requirements of railway engineering for steel bar accuracy and strength.
- Special projects such as nuclear power plants: In special projects with extremely high requirements for structural safety, CNC stirrup bending machines can provide high-precision steel bar processing to ensure project quality.
- Rebar processing and distribution center: Professional rebar processing plants use CNC stirrup bending machines to carry out batch and standardized rebar processing, and then distribute them to various construction sites.

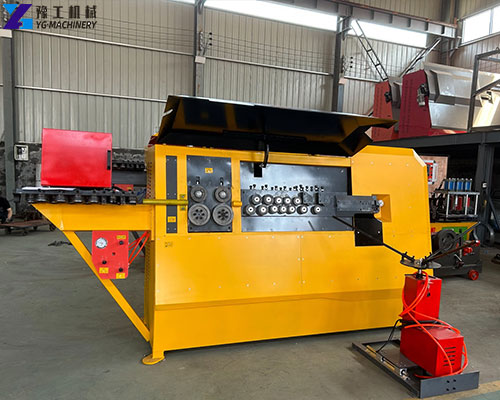

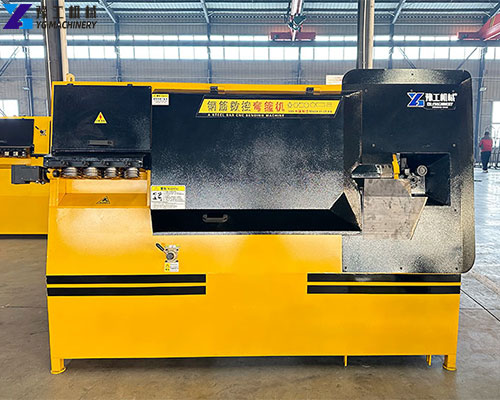

CNC Hoop Bending Machine for Sale – YG Machinery Manufacturer
The successful sales of the YG CNC hoop bending machine to Malaysia fully prove the excellent performance of our equipment in improving the efficiency and precision of steel bar processing. If you also want to achieve the automation upgrade of steel bar processing, improve the quality of the project, and reduce the cost like our Malaysian customers, then YG’s CNC hoop bending machine will be your ideal choice. Contact us now to get more product information and exclusive customized solutions.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
