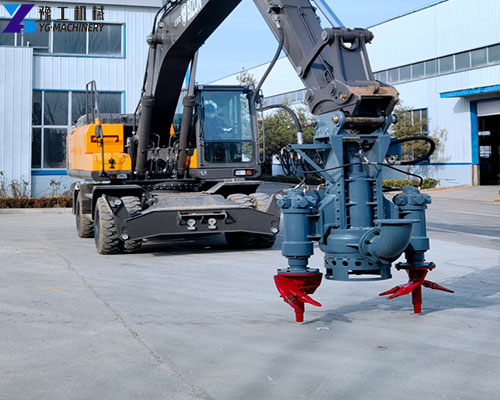

The slurry pump is a special equipment installed on the excavator, mainly used to extract underwater silt, sand, and other sediments. It combines the excavator’s powerful power with the sand pump’s efficient extraction capacity, making the dredging operation more convenient and efficient.
Hydraulic Excavator Dredge Pump Parameter:
| Serial No. | Model | Flow m3/h | Lift(m) | Matching Agitator | Stirrer Torque | Excavator Tonnage |
| 1 | YG200-15 | 200 | 15 | 5.5KW | 1556 | 10T-20T |
| 2 | YG150-30 | 150 | 30 | |||
| 3 | YG300-20 | 300 | 20 | |||
| 4 | YG400-10 | 400 | 10 | 7.5KW | 1946 | 20T-30T |
| 5 | YG500-15 | 500 | 15 | |||
| 6 | YG250-35 | 250 | 35 | |||
| 7 | YG300-30 | 300 | 30 | 15KW | 2433 | 30T-40T |
| 8 | YG400-30 | 400 | 30 | |||
| 9 | YG400-40 | 400 | 40 |
Features and Advantages of Excavator Slurry Pump
- High efficiency: Compared with traditional manual dredging, excavator mud pump has higher working efficiency and can greatly shorten the construction period.
- Flexibility: Installed on the excavator, it can flexibly reach various complex terrains for dredging operations.
- Wide applicability: It can be used for mud, sludge of various viscosities, and media containing solid particles.
- Easy operation: It is controlled by the excavator hydraulic system and is simple and convenient to operate.
Excavator Slurry Pump Application Range
- Sand pumping from rivers, lakes, oceans, and reservoirs.
- Desilting and sand pumping from rivers, lakes, reservoirs, and ports.
- Sand pumping and ore dressing: iron sand, gold sand, and rare earth sand.
- Cleaning of sedimentation tanks in sewage treatment plants.
- Cleaning of municipal pipelines, rainwater pumping stations, and hydropower sediments.
- Discharge of silt and mud from construction projects (sunken bridge construction, etc.).
- Pumping of blast furnace slag, slag, and iron oxide scale in steel plants.
- Transportation of tailings, slag, and coal slime in ore dressing plants.
- Cleaning of coal slag, coal, and coal slime.
- Transportation of fly ash, coal, and coal slime in power plants.
- De-poverty of various solid particles such as diamond sand, quartz sand, and slag.
Why Buy YG Excavator Dredge Pump?
- Wear parts are all made of wear-resistant material – chrome alloy, so the pump has better stability and longer service life.
- The unique mechanical seal device prevents the motor from being eroded by high-pressure water and impurities, thus ensuring high suction efficiency.
- Easy installation and operation, saving costs, because no additional vacuum pump or pump room is required.
- In addition to the main impeller, it is also equipped with a pair of stirring impellers to help crush and mix the sludge.
- Provide professional technical support throughout the use and maintenance process.
Selection of Excavator Sludge Pump
To choose a suitable excavator mud pump, you need to consider the following factors:
- Mud properties: mud viscosity, particle size, water content, etc.
- Flow rate, head: select the appropriate flow rate and head according to actual needs.
- Working pressure: select the appropriate working pressure according to the length and height of the pipeline.
- Excavator model: ensure that the mud pump matches the excavator.
