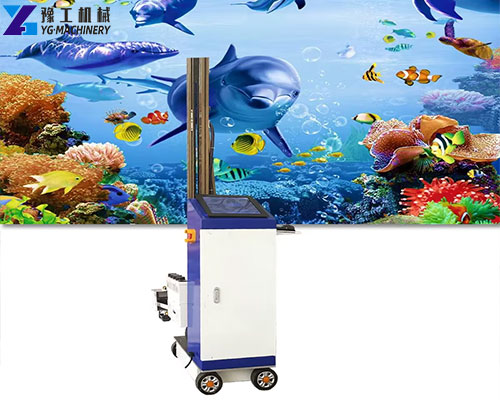

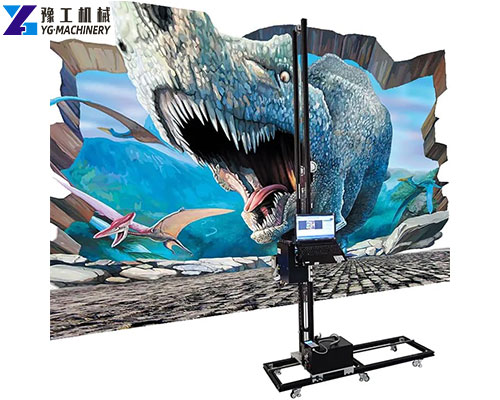

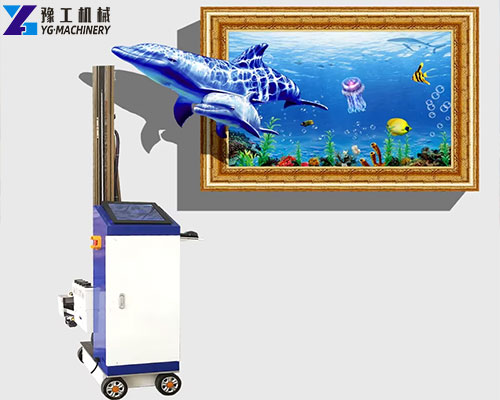

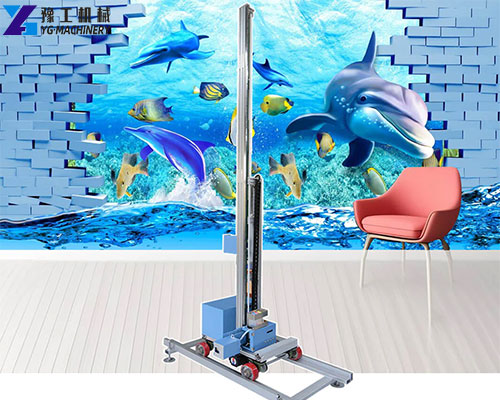

3D Wall Printing Machine Price

A 3D wall printing machine is an innovative device that combines advanced mechanical technology with digital design concepts. Its main function is to print digital images, patterns, or designs directly on various wall surfaces. From the appearance, it has a sturdy and user-friendly design, a large printing platform that can be flexibly adjusted according to the wall printing area, and the main body is made of high-strength materials to ensure stability during printing. It has been sold to many countries. If you are also interested, let me tell you about the 3D wall printing machine price.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800

Get a Free Quote

3D Wall Printing Machine Parameter:

Control method Wired/wireless printing
Printing Software Genuine industrial machine printing software
Ink type UV ink
Transportation and carrying Portable
Power No load 20W, maximum 250W
Surface tracking Hyperboloid banner sensor, up and down bidirectional sensing
Ink supply system Single-color single-supply for negative pressure system,4-color ink bin integrated
Printing size   3 meters high × Any width, more than 3m, can be seamlessly spliced
Construction noise Standby<20dBA,Drawing<60dBA
Support pictures Photos were taken by mobile phone, camera, and Internet
Voltage 220VAC/380VAC
Applicable medium Wall surface: Putty wall surface, Latex paint wall, Big white wall, Imitation porcelain wall, Rice paper, canvas, Wall clothing, Painted
glaze, Shell powder, Color grain paint, and other walls
Other media: Glass, tile, board, Acrylic, PVC and metal plates, etc.
Direct printing, print and dry without waiting
Image Format PSD, CDR, JPG, JPEG, PNG, BMP, TIFF, EPS, AI PDF, etc.
Color drawing technology Micro Piezo Inkjet Technology, Variable ink drop, High fault tolerance feathering technology,
Automatic memory recovery technology for construction interruption
Operating environment -20ºC-50ºC(-4°F-122°F),10%-70%,Relative humidity, non-condensing state
Print resolution 360×720dpi/720×1080dpi/720×1440dpi/1080×1440dpi/1440×2880dpi
Operating environment -20ºC-50ºC(-4°F-122°F),10%-70%,Relative humidity, non-condensing state
Storage environment -21ºC-50ºC(-22°F-140°F),10%-70%,Relative humidity, non-condensing state
Operating platform Windows XP/7/8/9/10
Certification qualification GPC,International test qualified(GB18582-2001,GBT9756-2001),CE
Print mode PASS m2/h
Fast mode A 24
Production mode B 18
Quality mode C 12
HD mode D 9
Size Machine size(cm):
L74×W40×H150
Package size(cm):

162*84*68 CM

Weight Machine weight 55KG Packing weight 185kg

Get a Free Quote

Working Principle of 3D Wall Printer:

YG 3D wall printer operates on the principle of inkjet printing. The digital design is first loaded into the machine’s software. The machine then precisely controls the movement of the print head along the horizontal and vertical axes. As the print head moves, it ejects tiny droplets of ink onto the wall surface at specific locations, forming the desired image layer by layer. The automatic height adjustment function ensures that the distance between the print head and the wall remains optimal for consistent drop placement and print quality, regardless of minor irregularities in the surface.

3D Wall Printer Features & Specifications:

  1. High Print Resolution: Achieve resolutions up to 1440 dpi, producing vibrant and detail-rich images on a variety of wall surfaces.
  2. Variable Inkjet Technology: Supports a variety of eco-friendly and UV-curable inks, providing excellent color fastness and durability.
  3. Automatic Height Adjustment: Equipped with a sensor that automatically detects the height of the wall surface, ensuring consistent print quality even on slightly uneven walls.
  4. User-Friendly Software Interface: Equipped with intuitive software that simplifies design uploading, printing parameter settings, and overall operation processes.
  5. Fast Print Speed: Capable of printing at speeds of up to 6-10 square meters per hour, significantly shortening project cycles.
  6. Wide Material Compatibility: Prints on a variety of wall materials, including painted walls, bricks, wood, plaster, and even certain types of wallpaper, expanding application possibilities.
  7. Customizable Print Size: Offers flexible print sizes to meet the needs of small decorative prints and large murals.

Get a Free Quote

3D Wall Printer Application Areas:

  1. Home Decoration: Create stunning and personalized feature walls in living rooms, bedrooms, and children’s rooms. Imagine printing beautiful scenery or your child’s favorite cartoon directly onto their bedroom wall.

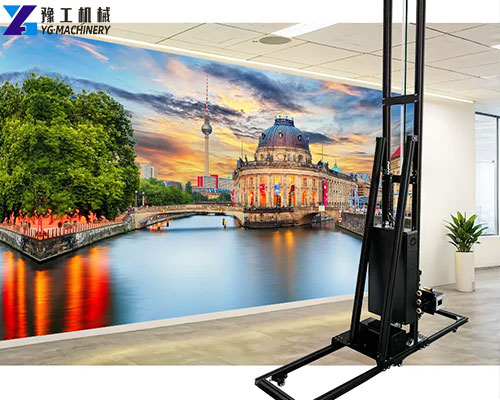

  2. Commercial Spaces: Custom-designed murals and graphics enhance the atmosphere and brand image of offices, retail stores, restaurants, and hotels. For example, a restaurant can print its logo or a visually appealing food-themed design.
  3. Public Places: Transform schools, hospitals, and museums with educational or decorative wall art to create an engaging and visually stimulating environment. Imagine printing a historical timeline or art reproduction in a museum.

Wall Printer Machine Customer Testimonials:

  • Interior Design Company, “Creative Walls”: “We were looking for a way to provide our clients with unique and personalized wall designs. The YG 3D Wall Printer is a great addition to our services. The 3D Wall Printing Machine is reasonably priced and the print quality is excellent. Our clients are very happy with the results and we have seen a significant increase in demand for custom wall decorations.”
  • Hotel Manager, Mr. Ashleigh: “We use the YG 3D Wall Printer to create themed murals in our hotel rooms. The machine is easy to operate and prints quickly, allowing us to decorate multiple rooms quickly and efficiently. The vibrant colors and intricate details significantly enhance the guest experience. We highly recommend YG’s 3D Wall Printer.”
